5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 262 -

5.2.2 Work with the File List in the PC

Changing the current management directory on the PC side

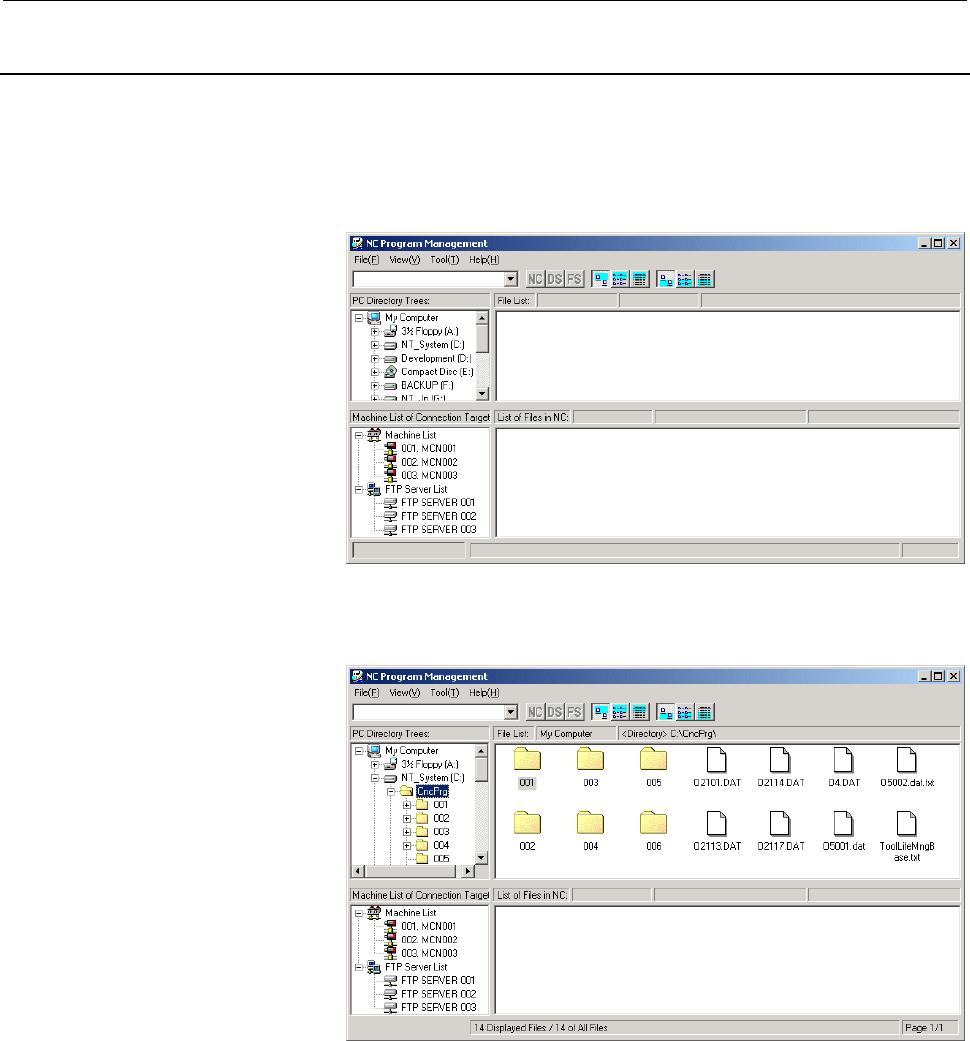

1 When the NC Program Management screen is activated for the

first time, My Computer is expanded in the PC Directory Trees,

and the Machine List and the FTP Server Lists are expanded in the

Machine List of Connection Target.

2 When you click a directory in the PC Directory Trees, it is selected

as the current management directory on the PC side, and the

contents of the directory are listed in the PC side File List.

When you click a machine in the Machine List of Connection

Target, the default directory set for the machine is selected in the

PC Directory Trees, and the contents of the directory are listed in

the PC side File List. When no default directory has been set for

the machine, the displayed information in the PC Directory Trees

and the PC side File List remains unchanged.
