B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 289 -

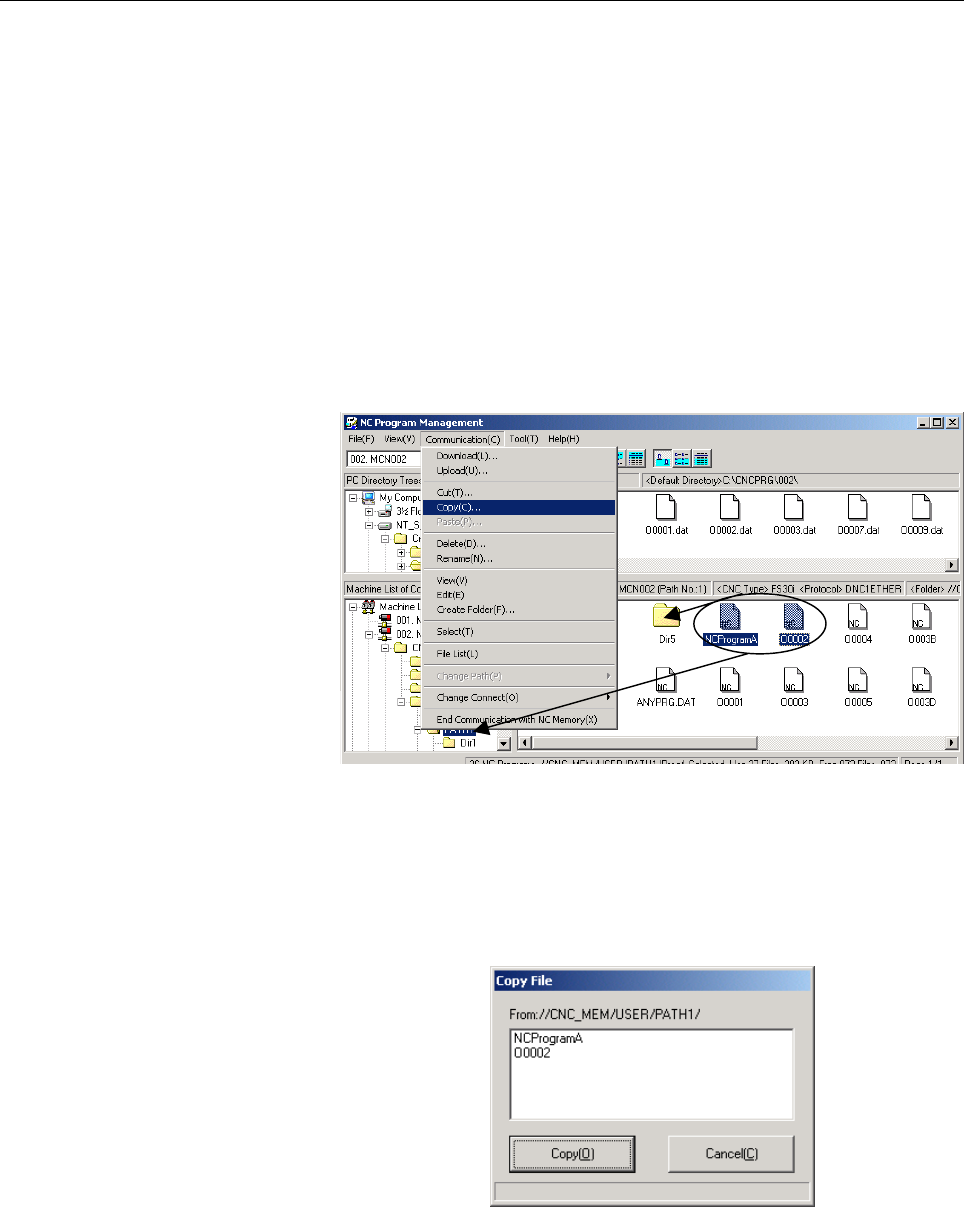

2 Perform a menu operation or drag and drop operation.

A) Menu operation

In the [Communication] menu or the menu displayed by

right-clicking on the selected file, click the [Copy] command.

Alternatively, press the [Ctrl+C] keys. The selected file is

then registered in the work list. (The work list is not

displayed.) Proceed to step 3.

B) Drag and drop operation

Drag the selected file to the directory in the Machine List of

Connection Target or the File List of the connection

destination then drop the file there while holding down the

[Ctrl] key. (The dragged and dropped file is not registered in

the work list.) The [Copy File] dialog box is displayed.

Proceed to step 5.

3 From the directory in the Machine List of Connection Target or

the File List of the connection destination, select and click a copy

destination.

4 Click the [Paste] command on the [Communication] menu or the

right-click menu in the File List of the connection destination, or

press the [Ctrl+V] keys. The [Copy File] dialog box is displayed.

5 Click the <Copy> button.
