4.WEB SETTING B-75074EN/04

- 198 -

4.3 POINT FOR WEB

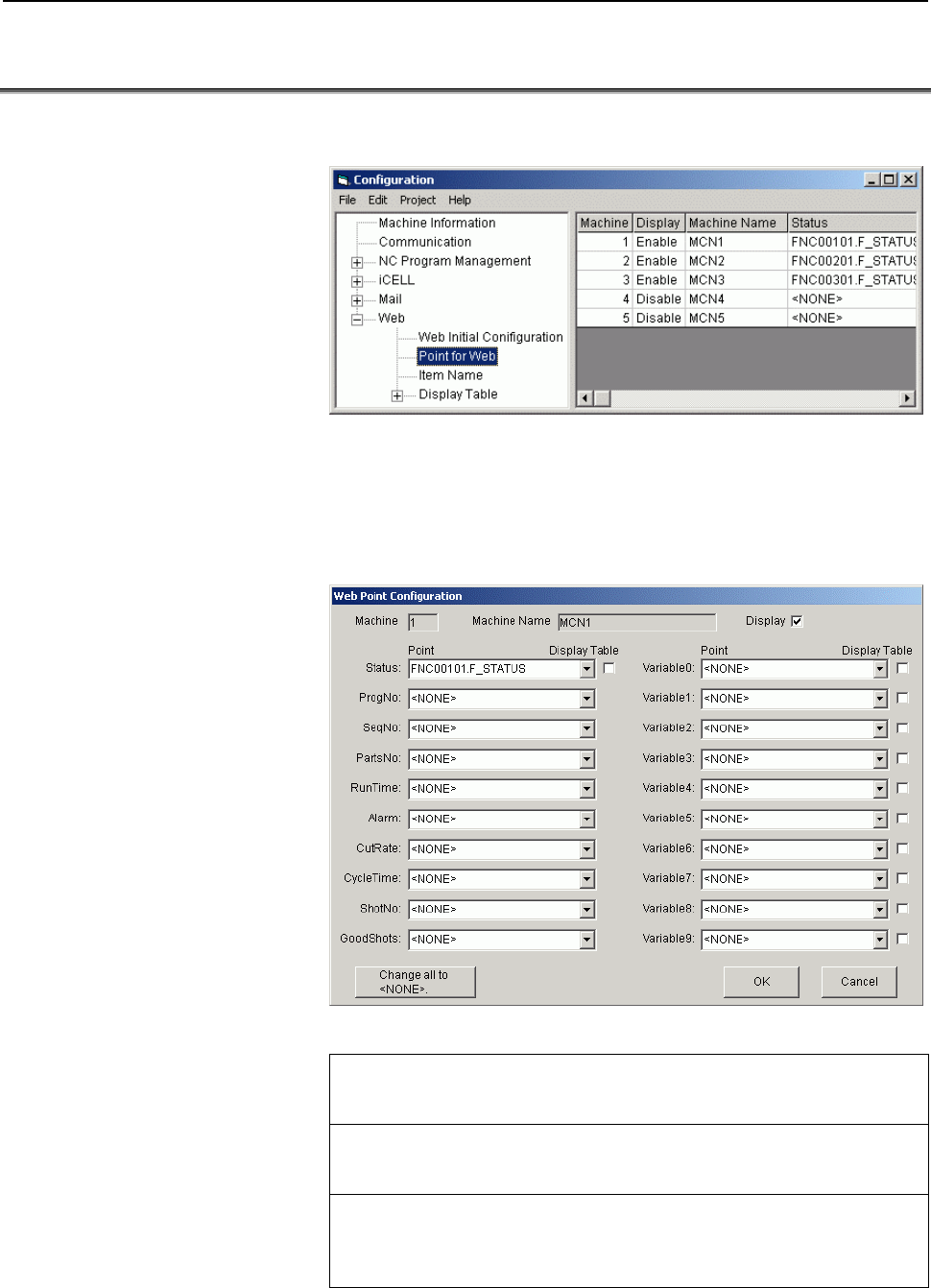

Selecting Web and Point for Web from the tree lists the settings of the

currently registered Web points in the grid.

Each row in the grid corresponds to one machine. The grid can contain

as many rows as the maximum number of machines set up with

Property in the Project menu.

If you double-click a row in the grid, or if you click a row in the grid and

select Edit from the menu bar, then Property from the Edit menu, the

Web Point Configuration dialog box appears.

The setting items in this dialog box are explained below.

Machine

Machine Name

These boxes display the machine number and name

selected from the grid. Neither machine number nor

name can be changed here.

Display

Turning on this item causes point values to be

displayed over the Web. Turning it off disables them

from being displayed.

Points for Status to

GoodShots and

Variable0 to

Variable9

These list boxes let you select points to be displayed

over the Web.

Selecting “<NONE>“ for an item disables the item

from being displayed on the machine detail screen.
