9.NC MAINTENANCE OPERATION B-75074EN/04

- 354 -

9.4.3 Clearing History Data

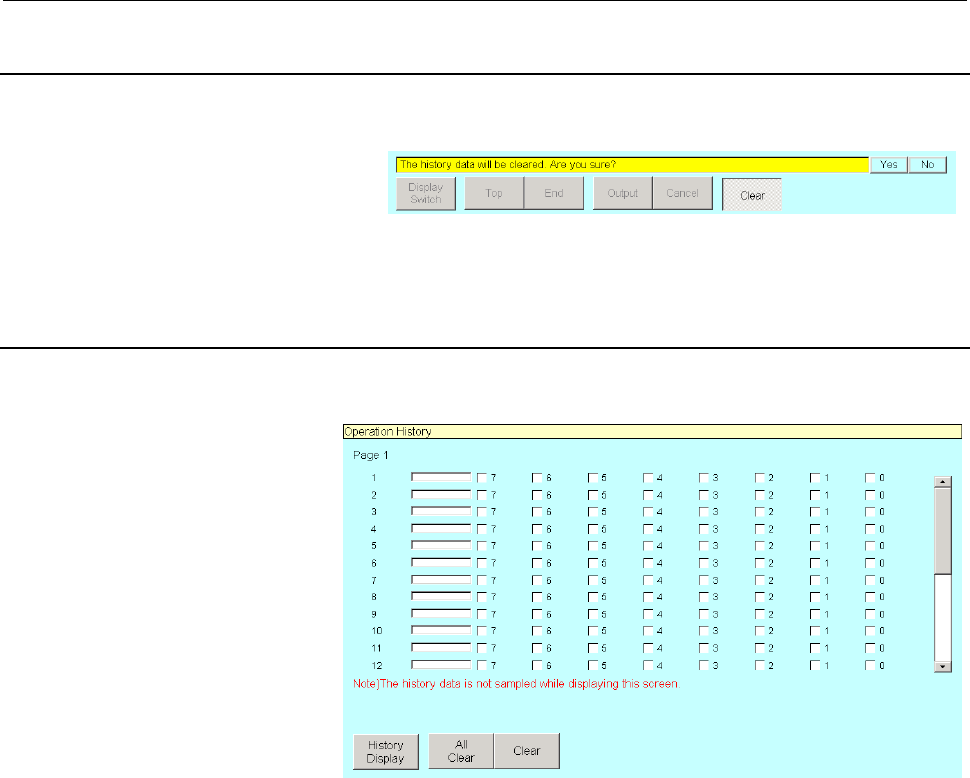

When you click the [Clear] button, the following inquiry appears to

confirm that history data may be cleared:

Click the [Yes] button. The history data is cleared.

9.4.4 History Signal Setting

Click the [Signal Setting] button. The screen changes as shown below,

enabling operation history I/O signals to be set.

• Setting of I/O signals

Set signal names, signal numbers, and bit data subject to I/O signal

history data manipulation. Up to 20 data items can be set.

• All clear

When you click the [All Clear] button, all currently set operation

history target signal data is cleared.

• Clear

When you click the [Clear] button, the operation history target

signal data where the cursor is placed currently is cleared.

• Display of the operation history screen

When you click the [History Display] button, the screen display

returns to the operation history display screen.
