5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 268 -

Deleting Files and Directories in the PC

1 Choose the file and directory (hereinafter simply referred to as the

file) you want to delete from the PC side File List.

You can select more than one file by clicking files while pushing

the [Ctrl] key.

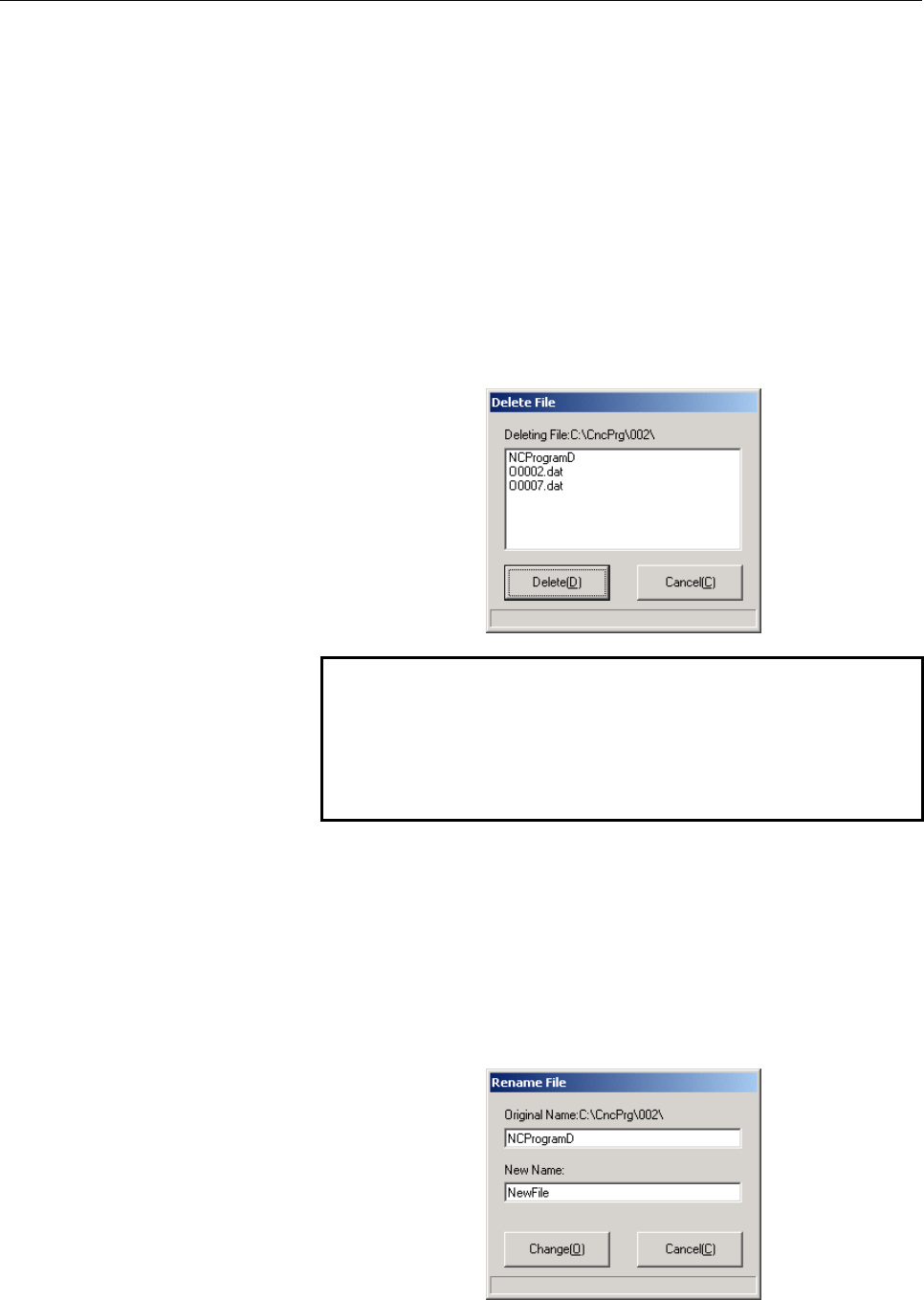

2 When one of the following operations is performed, the [Delete

File] dialog box appears:

• Press the [Delete] key.

• Click the [Delete] command in the [File] menu.

• In the menu displayed by right-clicking on the selected file,

click [Delete] command.

3 If the <Delete> button is clicked, the selected file is deleted from

the NC memory.

If the <Cancel> button is clicked, the deletion is canceled.

NOTE

1 When a directory is deleted, all files and directories

included in the directory are deleted.

2 Deleted files and directories are completely removed

from the PC. Take special care when deleting files

and directories.

Renaming the file or directory in the PC

1 Choose the file or directory you want to rename from the PC side

File List.

2 In the [File] menu or the menu displayed by right-clicking on the

selected file, click the [Rename] command. Then, the [Rename

File] dialog box appears.

3 Enter a new name of the file, and click the <Change> button.

Unless you enter a name in the text box, the <Change> button does

not become effective.
