B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 299 -

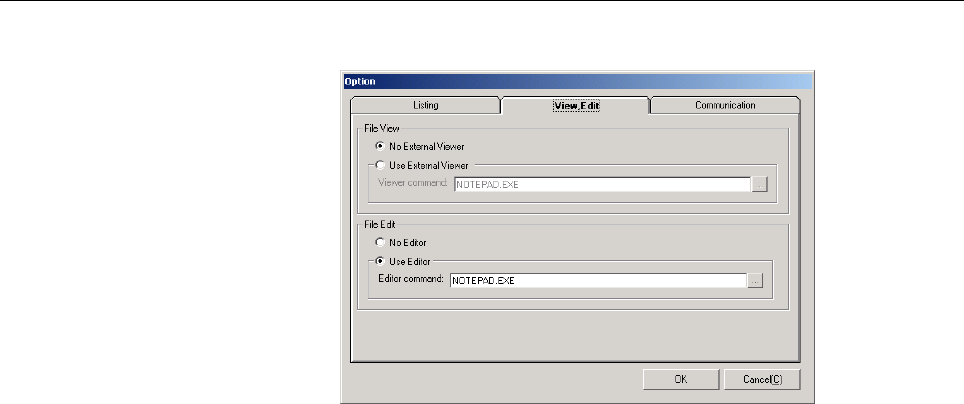

View, Edit tab

1 In the [File View] frame, make settings relating to file browsing.

• If you select the [No External Viewer] option, the File

Viewer integrated in NC Program Management is used.

• If you select the [Use External Viewer] option, you can

specify third-party viewer software. Enter the command for

starting the editor in the [Viewer command] box.

2 In the [Edit File] fame, make settings relating to file editing.

• If you select the [No Editor] option, you can no longer edit

files or create new files.

• If you select the [Use Editor] option, you can edit files or

create new files using the specified editor. Enter the

command for starting the editor in the [Viewer command]

box.

NOTE, however, that the [Edit File List] screen is used for

editing the File List.
