5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 278 -

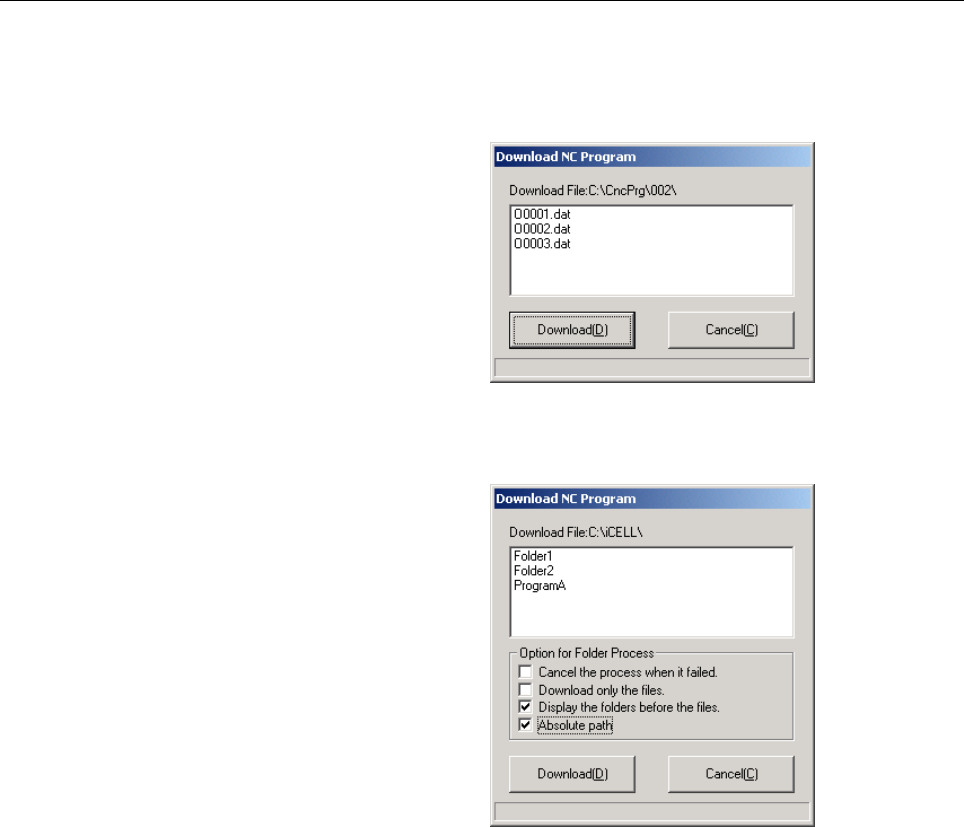

3 The [Download NC Program] dialog box for the data to be

downloaded is displayed.

When only files are downloaded, a dialog box as follows appears:

When only folders, or files and folders are downloaded, the dialog

box as shown below appears. Select options for folder processing.

The following options are provided for folder processing:

Cancel the process when

it field.

Processing stops when downloading of a

file fails. The subsequent files are not

downloaded.

Download only the files. Only files contained in a selected folder are

downloaded. Folders in the selected folder,

and files (or folders) in these folders are not

downloaded.

Display the folders before

the files.

File names are displayed prior to folder

names in the result dialog box.

Absolute path The absolute paths of downloaded folders

and files are indicated in the result file

(Note)
