2.2.4 How to Change Settings

Adding and editing settings

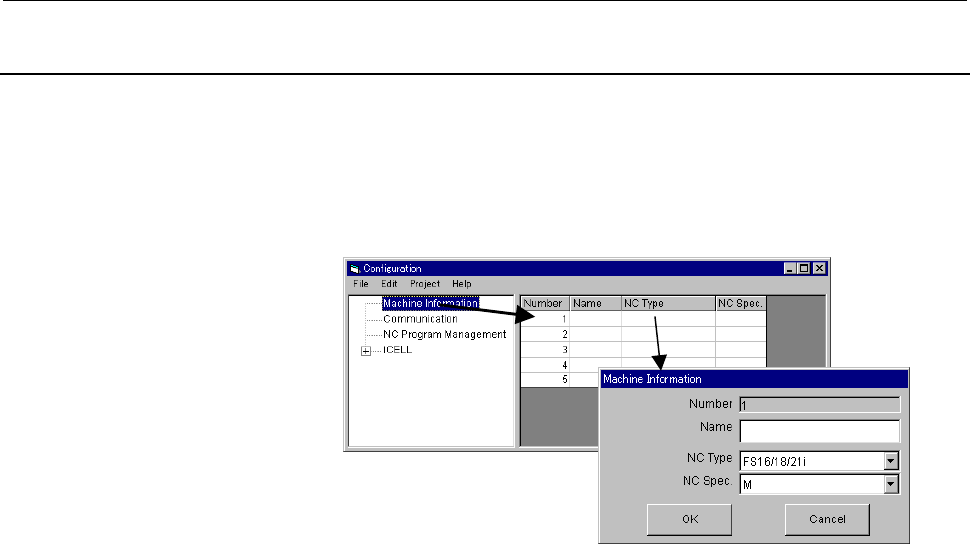

Selecting an item from the tree in the left section (<1> in the following

figure) displays, in the grid in the right section, a summary of data about

the selected item. Double-clicking a row in the grid (<2> in the

following figure) displays a dialog box for changing the setting in that

row.

<1>

<2>

You can display the same dialog box also by selecting (clicking) the

row in the grid and selecting Edit from the menu bar, then Property

from the Edit menu.

If an item has a fixed number of pieces of data, the necessary data is

prepared in the grid in advance. If not, you create data by selecting Edit

from the menu bar, then New from the Edit menu.

Deleting settings

After selecting (clicking) a row from the grid, selecting Edit from the

menu bar, then Delete from the Edit menu causes the setting to be

deleted.
