B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 141 -

Incorrect setting (3)

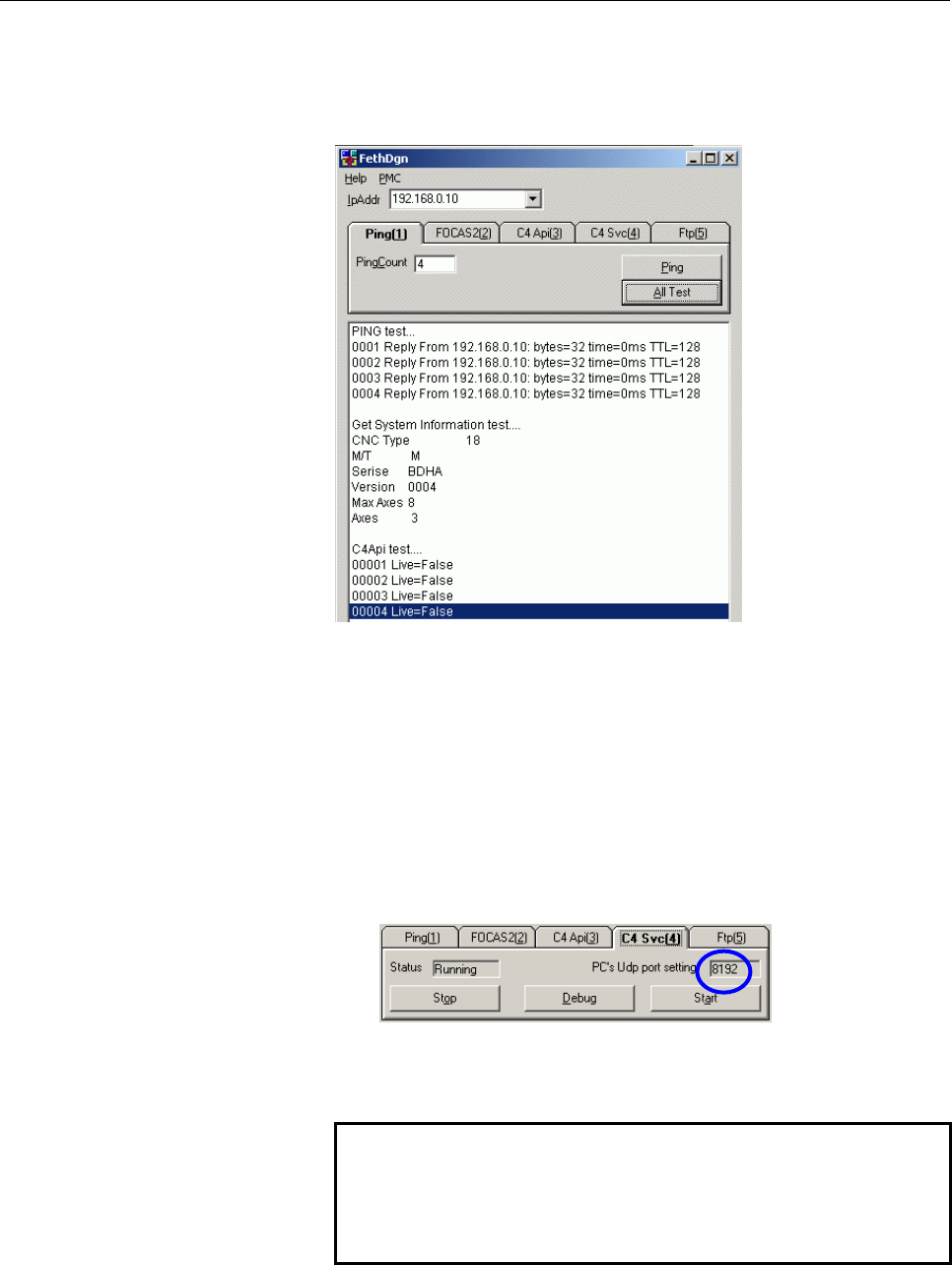

When the IP addresses set up for the PC and NC are correct, and the NC

power is on, if any other kind of setting is incorrect, the dialog box may

appear as shown below.

Unlike the display of correct settings, “C4Api test...” contains

Live=False.

In this case, the probable causes are:

(1) The “PC's Udp port setting” displayed when i CELL was installed

in the PC does not match the UDP port number set up for the NC.

On the [C4Svc] tab, the “PC's Udp port setting” for the current PC

appears as shown below. Ensure that it matches the UDP port

number set up for the NC. If it does not match, change the UDP

port number set up for the NC so that it matches the following

display.

(2) The “Time Interval” for the NC is 0.

Enter 50.

NOTE

When the "Enable C4 Server" check box is cleared

in communication setting, Live=True/False need not

be checked. The "Time Interval" for the NC need not

be set either.
