B-75074EN/04 OPERATION 9.NC MAINTENANCE

- 359 -

9.6 FROM/SRAM DATA BACKUP/RESTORATION

The FROM/SRAM data backup/restoration function can back up,

restore, and delete FROM data and can back up SRAM data.

NOTE

1 In FROM data backup/restoration/deletion, only user

files created by the machine tool builder or user in

FROM can be backed up, restored, and deleted. The

system files distributed by FANUC cannot be backed

up, restored, and deleted.

2 To restore SRAM data, the NC boot function needs

to be used.

3 This function for Series 30i/31i/32i is under

development.

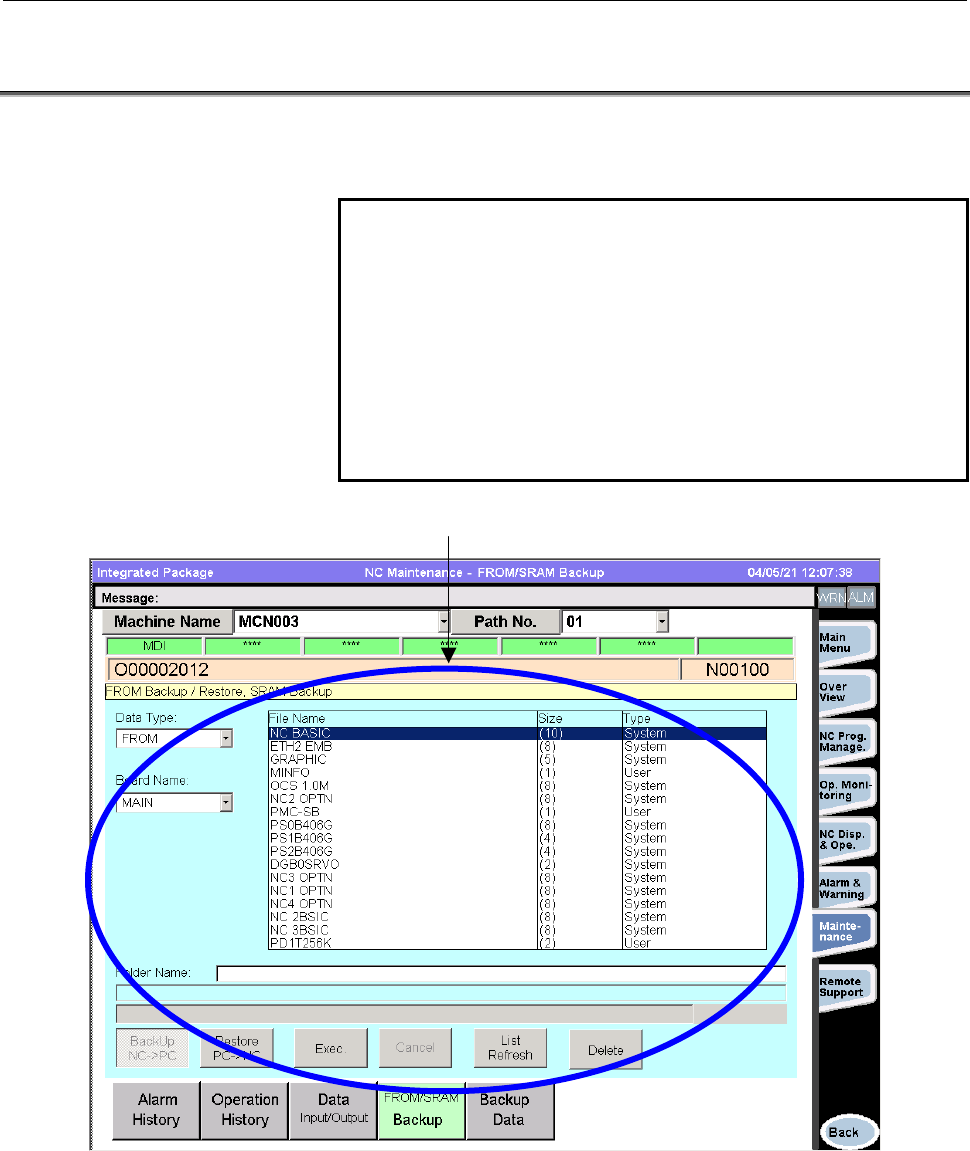

<1> FROM/SRAM data backup/restoration
