2.BASIC FUNCTIONS SETTING B-75074EN/04

- 174 -

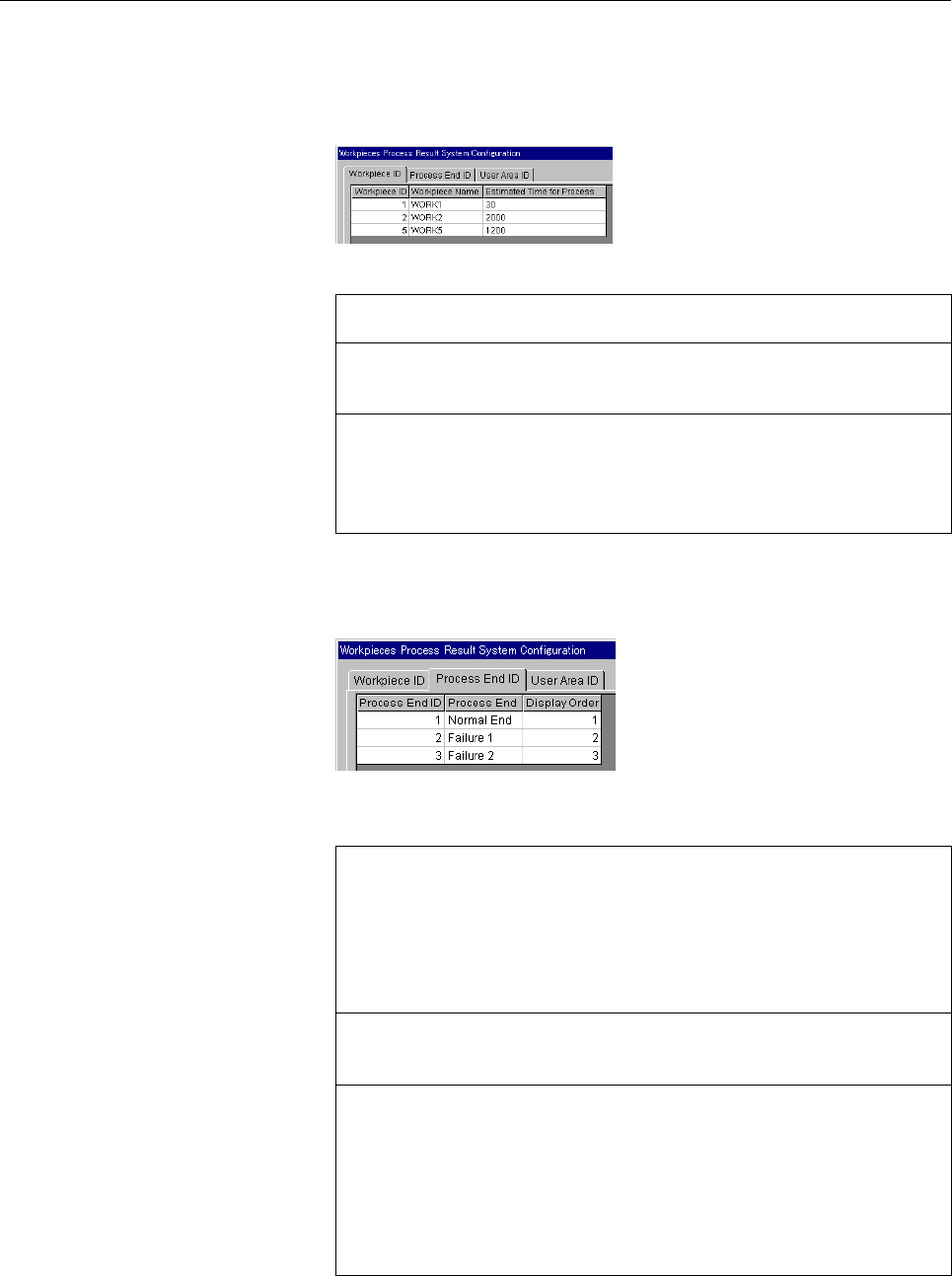

Workpiece ID

The Workpiece ID tab lets you set up the scheduled machining time in

addition to the workpiece ID and workpiece name.

The meaning of each item on this tab and the entry rules are explained

below.

Workpiece ID

Workpiece ID value received from the NC, ranging from

1 to 99999999.

Workpiece Name

Character string used to display a workpiece ID

received from the NC on the screen, consisting of up to

20 alphanumeric characters.

Estimated Time

for Process

Time (in seconds) needed to process the workpiece,

ranging from 0 to 99999999. It is used to obtain that

scheduled time for completion of all the workpieces

which is to be displayed as the status of progress in the

workpieces process result dialog box.

Process End ID

The Process End ID tab lets you set up the display order in addition to

the process end ID and the end status of the process.

The meaning of each item on this tab and the entry rules are explained

below.

Process End ID

Process end ID received from the NC, ranging from 1 to

9999. The value 1 means a normal end. It is used to

obtain the number of workpieces yet to be processed

from the total number of workpieces to be processed.

Any value other than 1 is assumed to indicate an

abnormal end. Be sure to set the value 1 and the

display number 1 as well.

Process End

Character string used to display the process end ID

received from the NC on the screen, consisting of up to

20 alphanumeric characters.

Display Order

Digit from 0 to 5, indicating the sequence of displays on

the screen, used in counting the processed workpieces

in the process end status. Items having display order

numbers 1 to 5 are grouped by display order number to

count the processed workpieces for display on the

screen. Items having display order number 0 are

counted as “Others” for display on the screen. Be sure

to set 1 for Process End ID set to 1.
