B-75074EN/04 OPERATION 10.TOOL LIFE MANAGEMENT

- 369 -

<1> Display change button

This button switches the screen display between tool group list display

and tool group detail display. At the time of tool group list display, this

button is enabled only if a group number is already selected (a group

number of the table is clicked and the color of the line is reversed).

The keytop of this button displays [Detail] at the time of tool group list

display, and displays [List] at the time of tool group detail display.

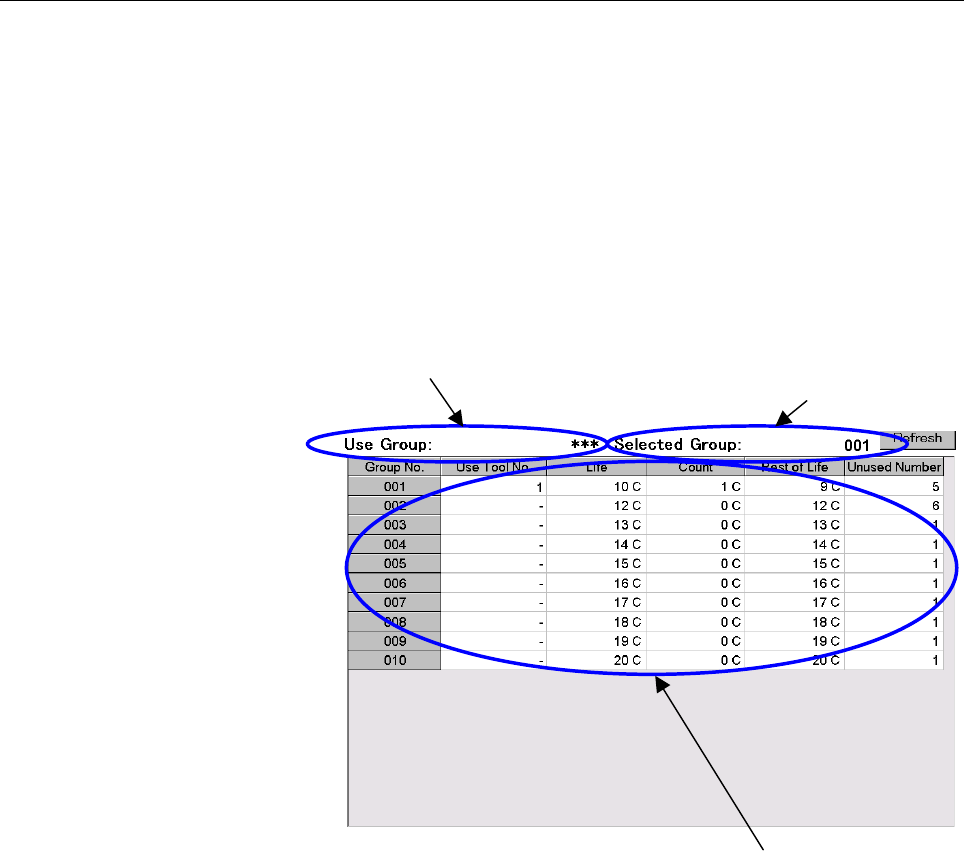

- Example of tool group list display

A tool group list is displayed. However, a tool group with no tool

registered is not displayed.

A. Currently used tool group number display

The currently used tool group number is displayed. When no tool

group is currently used, [***] is displayed.

B. Currently selected tool group number display

The currently selected tool group number is displayed. When no

tool group is currently selected, [***] is displayed.

C. Tool group list

• Group No.

Tool group numbers are displayed.

• Use Tool No.

The order number of each currently used tool is displayed.

When no tool is used currently, [-] is displayed.

• Life

The life of each currently used tool are displayed.

• Count

The count of each currently used tool is displayed.

B. Currently selected tool group number display

. Currently used tool group number displa

C. Tool group list
