B-75074EN/04 USER CUSTOMIZE 2.ADDING SCREENS

- 399 -

2.3.5 Warning and Alarm Lamps

The warning and alarm lamps post the output of a warning and alarm

(operator message).

Setting

The points below need to be set.

FNCSYSP.F_WARNING

Whether a warning is output with the i CELL is

indicated.

0: Not output, 1: Output

FNCSYSP.F_ALARM

Whether an alarm is output with the NC is

indicated.

0: Not output, 1: Output

FNCSYSP.F_OPM

Whether an operator message is output with the

NC is indicated.

0: Not output, 1: Output

These points are automatically set by the i CELL, so that the user need

not set these points.

Operation

When FNCSYSP.F_WARNING=1, the warning lamp blinks in yellow.

When FNCSYSP.F_ALARM=1, the alarm lamp blinks in red.

When FNCSYSP.F_OPM=1 and FNCSYSP.F_ALARM≠1, the alarm

lamp blinks in purple, and the character string changes from "ALM" to

"OPM".

If you click a blinking lamp, the screen display switches to a screen that

provides detailed information.

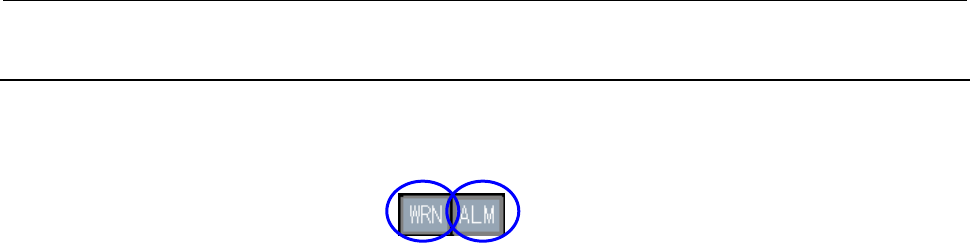

Warning lamp

larm (operator message) lamp
