11.ALARM AND WARNING OPERATION B-75074EN/04

- 376 -

NOTE

When DNC2 is used, only those alarms that are

irrelevant to axes can be displayed.

<8> Operator message display

Operator messages issued for the displayed machine are displayed.

The following items are displayed:

⋅ Path (If a distinction between paths is not made, [---] appears.)

⋅ No. (If no number is assigned, [---] appears.)

⋅ Message

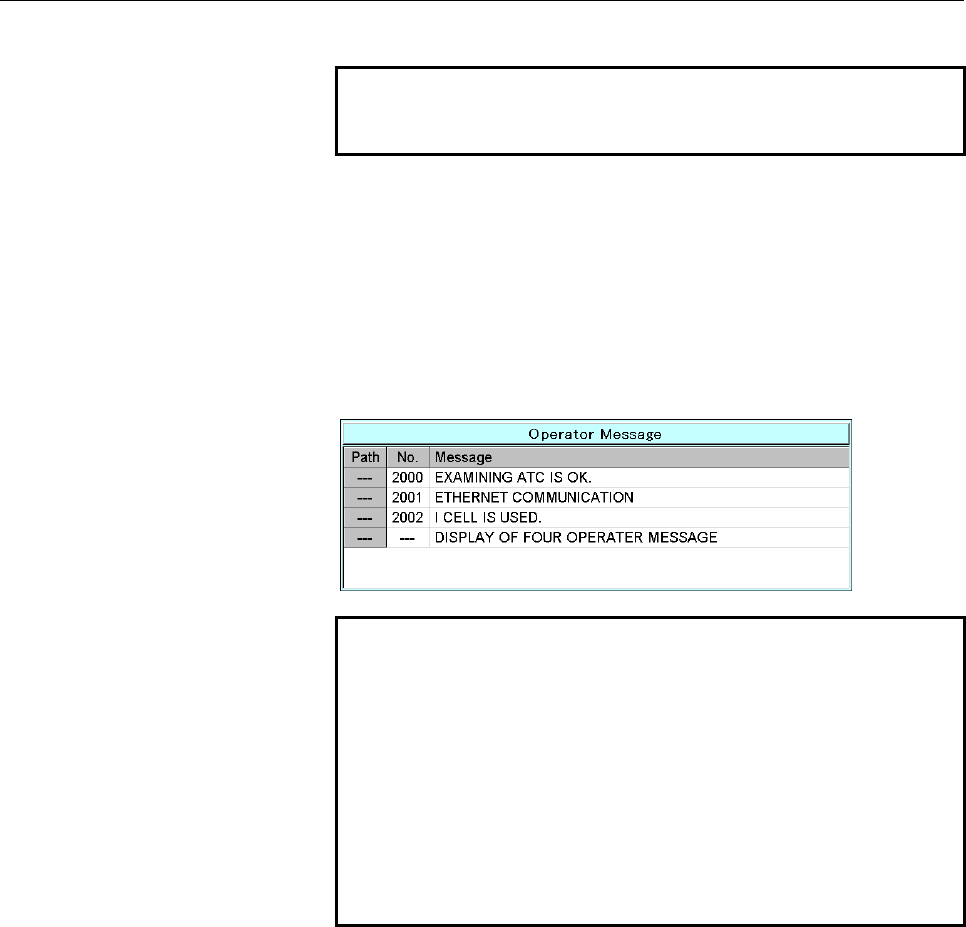

Example

NOTE

1 If four operator messages are displayed on the i

CELL setting screen, and a function for displaying

four messages is set on the NC, up to four operator

messages can be displayed. In other cases, only

one message can be displayed.

2 The symbols & and ~ displayed on the NC side are

displayed as indicated below.

NC side & ~

i CELL side _ •
