2.BASIC FUNCTIONS SETTING B-75074EN/04

- 152 -

2.7.1 General Tab

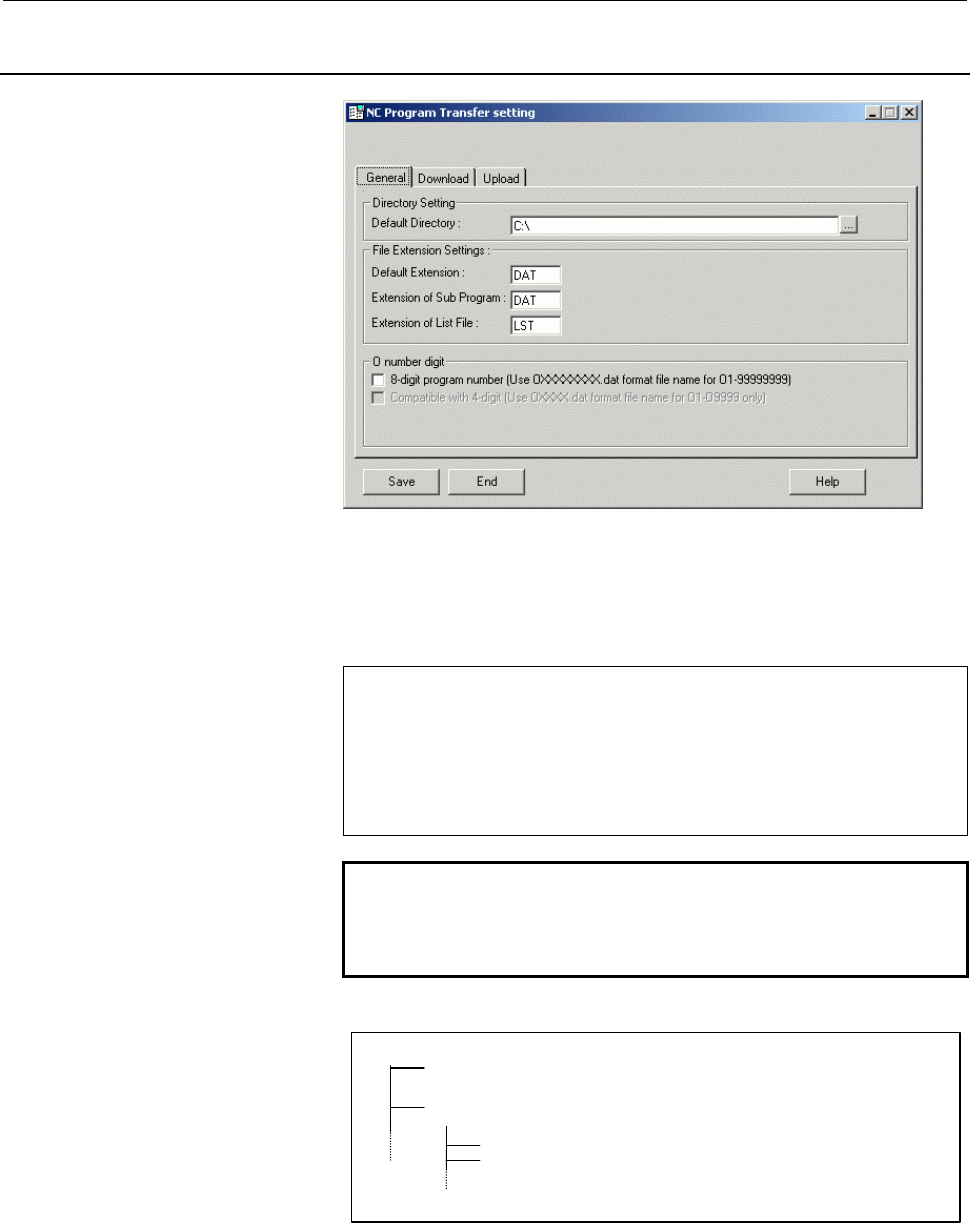

The General tab lets you specify a directory for NC programs to be sent

or received, file extensions, and O number digit.

The setting items on this tab are explained below:

Directory Setting frame

Default Directory

This box lets you specify what directory in the PC is to

be used to manage the NC programs for each NC.

It is possible to assign a directory to each NC. It is also

possible to assign one directory to all or multiple NCs

so that NC programs can be shared.

Clicking the button at right of the text box displays a file

list. Select a default directory from the file list.

NOTE

If one directory is assigned to all or multiple NCs, it is

impossible to create NC programs having the same

O-number but different contents.

Create default directories as shown below:

1 C:\Program Files\Fanuc\iCELL (Selected at installation.)

2 CimProject (Automatically created during installation.)

3 NcData (Create a parent directory for the default directory.)

001 (Create a default directory for NC001.)

002 (Create a default directory for NC002.)

This default directory configuration enables efficient backup to be

performed. See Section 5.1, “BACKUP,” of Part II, “Installation.”
