5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 312 -

Changing the Transfer Instruction

Change the transfer instruction, for example, to cancel the pause

transfer instruction or skip a non-transferred record in order to resume

transfer of a paused record.

To change the transfer instruction, use the [Skip], [Pause] and [Cancel]

commands in the [Edit] - [Send Command] menu.

To set the same instruction to all records following a specified record,

use the [Skip] and [Cancel] commands in the [Edit] - [Send Command]

- [All of Records Below Cursor] menu.

The meanings of the various commands are as follows:

• When you instruct [Skip], that record is not transferred, and

transfer of subsequent records is continued.

• When you instruct [Pause], transfer of all records following that

record is not carried out and transfer is paused.

Transfer by the [Edit] menu is specified as follows:

1 Select the record whose transfer order you want to change in the

[Contents of List] list box.

2 Set the [Skip], [Pause] or [Cancel] commands in the [Edit] menu.

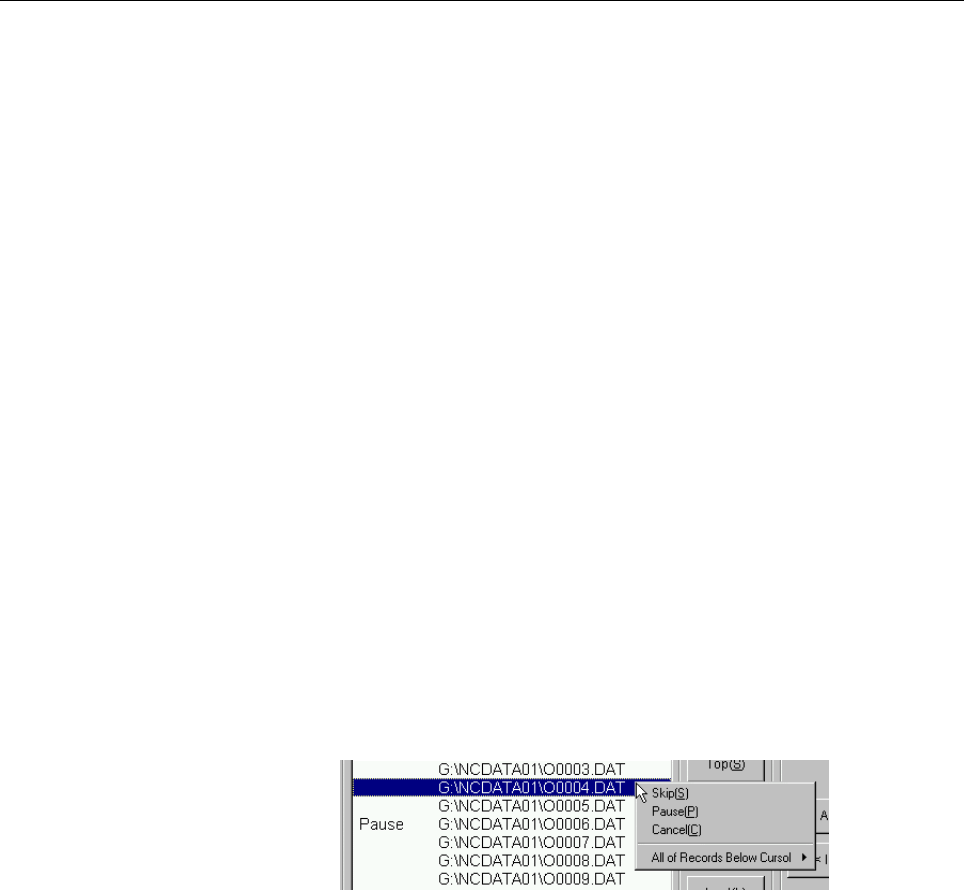

In addition to transfer by the [Edit] menu, you can also instruct transfer

in the context menu of the right mouse button.

1 Bring the mouse cursor to the record whose transfer order you

want to change in the [Contents of List] list box, and press the right

mouse button.

2 The same menu as the [Edit] menu appears.
