5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 284 -

5.2.6.2 Communication with a Data Server (FTP server)

Displaying the File List of a connection destination

1 From the Machine List or FTP Server List in the Machine List of

Connection Target, select a machine.

2 <When selecting a machine from the Machine List>

Usually, communication with NC memory starts. Switch the

connection by using one of the methods listed below. As the

connection is switched, FTP communication with the selected

machine starts.

• Point to the [Change Connect] command in the

[Communication] menu. A list of connection destinations is

then displayed. Click [Data Server].

• Click the [DS] button in the tool bar.

FTP communication with the selected machine starts.

The start of communication when a machine is selected can be

suppressed by option setting. For details, see the description of the

communication tab in Subsection 5.2.10, "Setting Options". When

this option is set, communication is started by clicking the [Start

Communication with FTP] command in the [Communication]

menu.

Under the name of the connected machine in the Machine List of

Connection Target, directory information of the connected

machine is displayed in a tree structure. If the login directory has

been set on the i CELL setup screen, a list of files in the directory

is displayed in the File List of the connection destination. If the

set on the connection destination side is displayed.

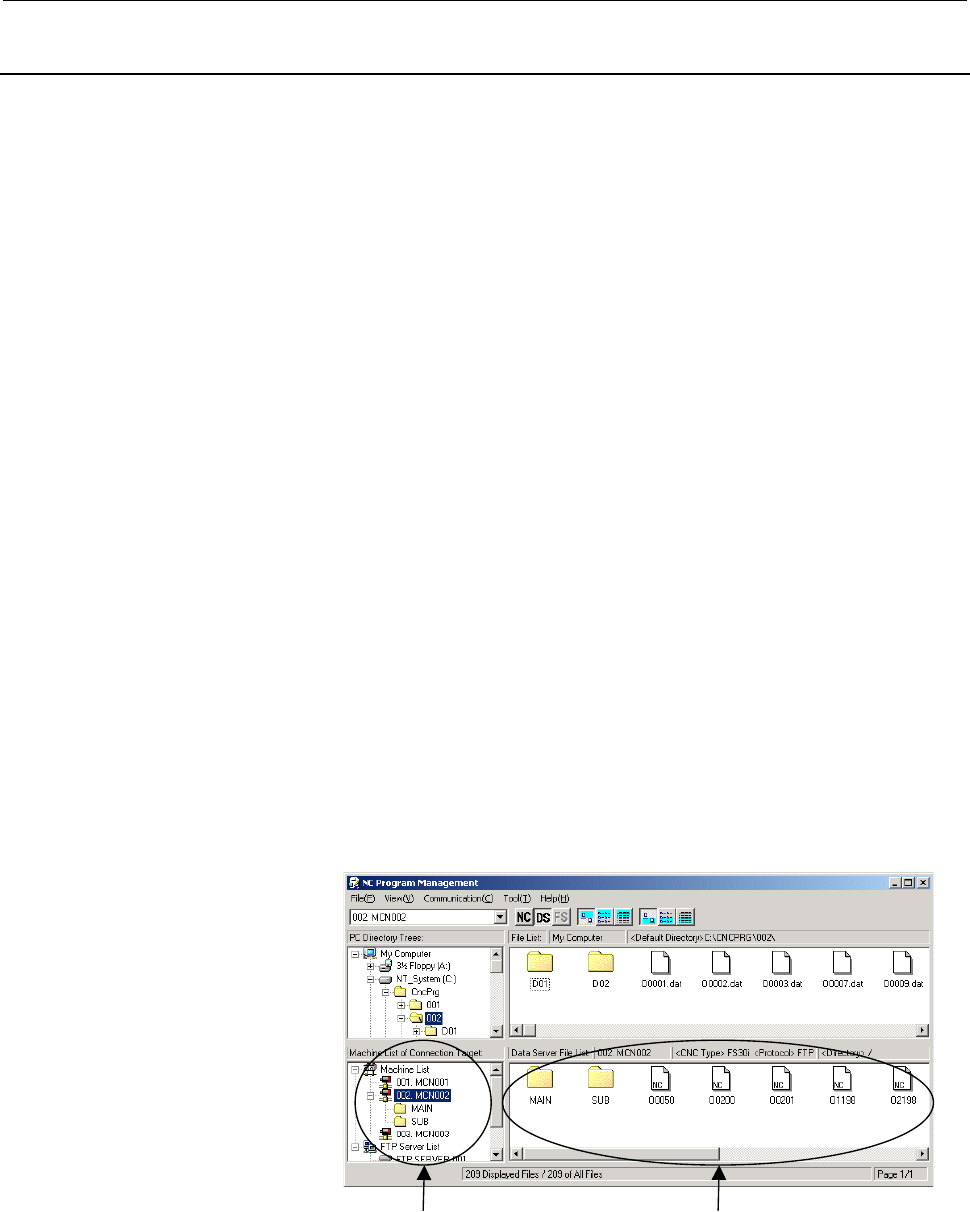

Displays files in the data server o

machine MCN002.

Displays directory information in the

data server of machine MCN002.

• Each time you click the [File List] command on the

[Communication] menu, the File List of the connection

destination is updated to the latest information.
