FANUC i-Cell Operators manual Page 157

Operators manual

Page of 739

/ 739

B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 131 -

Paths details

setting

Set M (machining type) or T (lathe type) for each CNC

path. This box is usable only with Series 30i/31i/32i.

PMC Spec.

Select the PMC specification of the machine. Available

only when NC Type is “FS15B”.

Clicking the OK button saves what you specified and closes the

Machine Information dialog box. Clicking the Cancel button discards

what you specified before closing the dialog box.

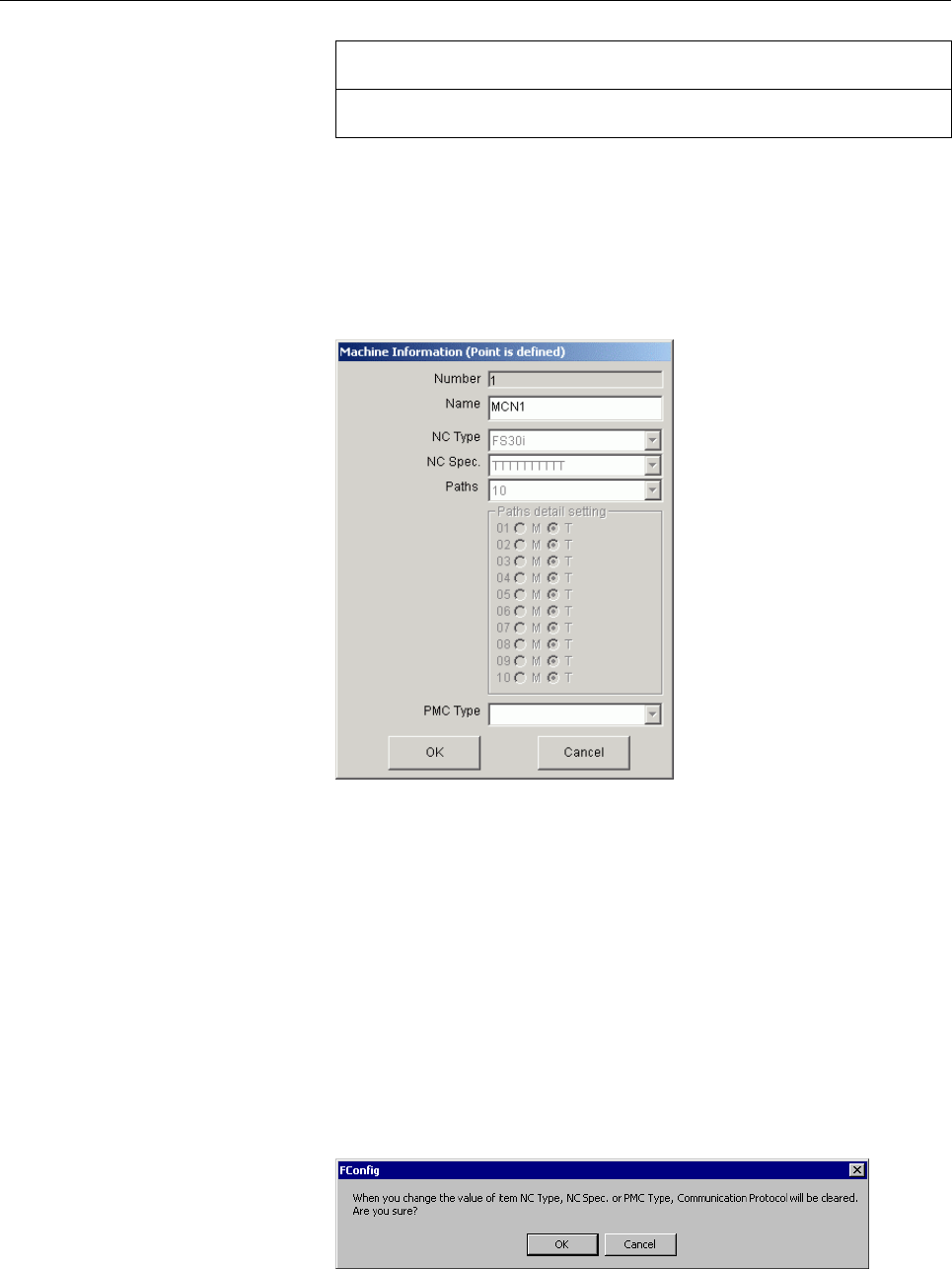

Once the i CELL function is set up, the Machine Information dialog box

appears as shown below.

If the title of the dialog box contains the phrase “(Point is defined),” you

cannot change either of the NC Type, NC Spec. and PMC Type settings.

To change the NC Type, NC Spec. or PMC Type setting, clear all the i

CELL functions.

To clear all the i CELL functions, select i CELL and Machine from the

tree, then double-click the target machines in the grid. The i CELL

Machine dialog box appears. On the Machine tab of this dialog box,

click Disable All button, then the OK button.

If the NC Type, NC Spec., and PMC Type are changed for the machine

for which a communication protocol has been set up, the

communication protocol is cleared to “None.”

The following dialog box appears.

Selecting OK clears the communication protocol and saves the changes.

Selecting Cancel deletes the changes.

If you clear a communication protocol, set one again.
