B-75074EN/04 GENERAL 7.NC MAINTENANCE

- 59 -

7 NC MAINTENANCE

In NC maintenance, operations such as input/output of NC maintenance

information and various types of data can be performed for each NC.

For NC maintenance, the following functions are available:

1. Alarm history display and external operator message history

display

2. Operation history display and history signal setting

3. Various data backup/restoration

4. FROM backup/restoration and SRAM backup

5. Automatic backup of various data items and display of history data

NOTE

1 The FOCAS2/Ethernet function is required.

2 When the i CELL is used on the CIMPLICITY

viewer, history data automatically backed up cannot

be displayed.

3 With Series 30i /31i /32i, only the function for

backing up and restoring various types of data can

be used. Other functions are under development.

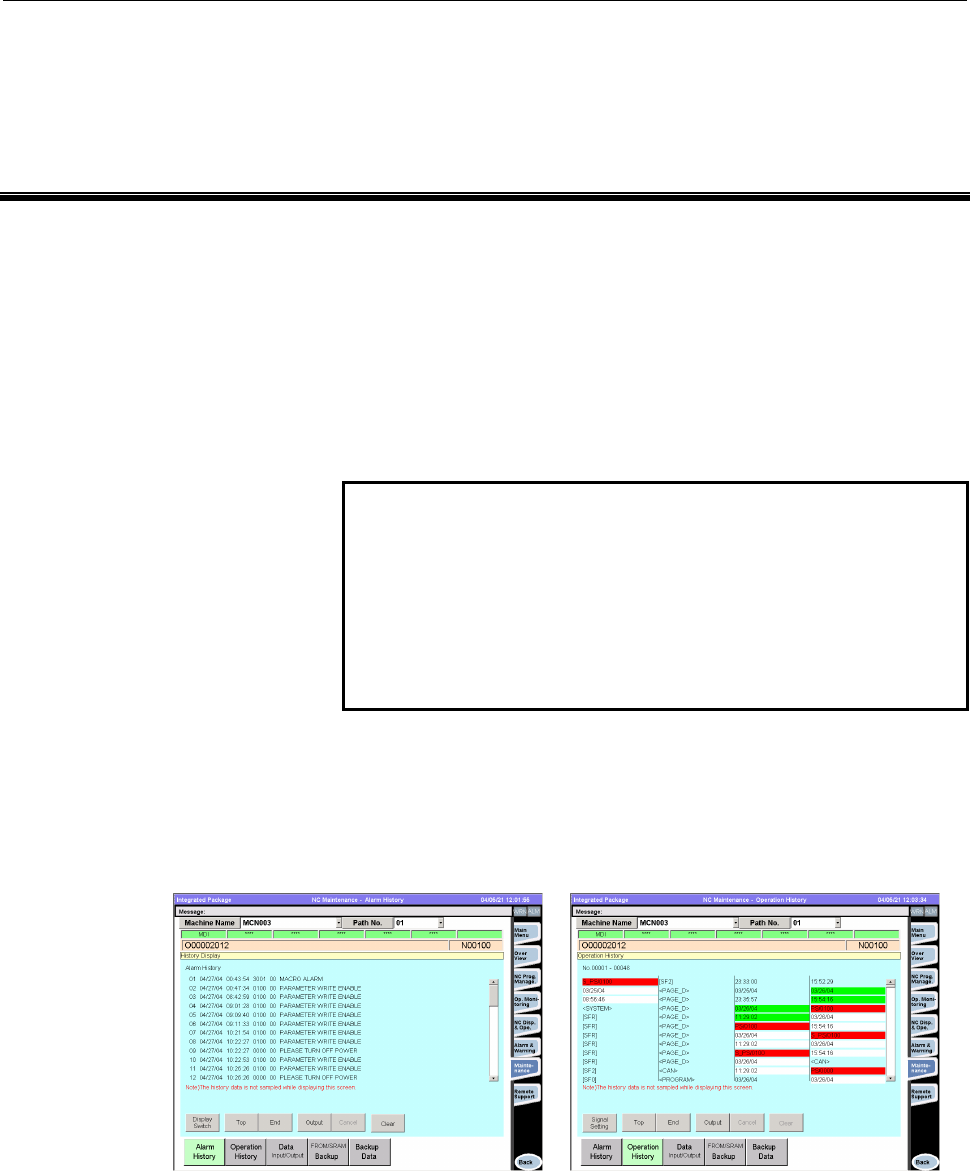

NC maintenance screen

Examples of NC maintenance screens are given below.

By selecting an NC machine and path number, the maintenance screen

for each NC can be displayed.

Alarm history screen Operation history screen

Alarm history data and operation history data displayed can be output to

a file.
