FANUC CIMPLICITY i CELL

OPERATOR’S MANUAL

05.05.19

B-75074EN/04-2

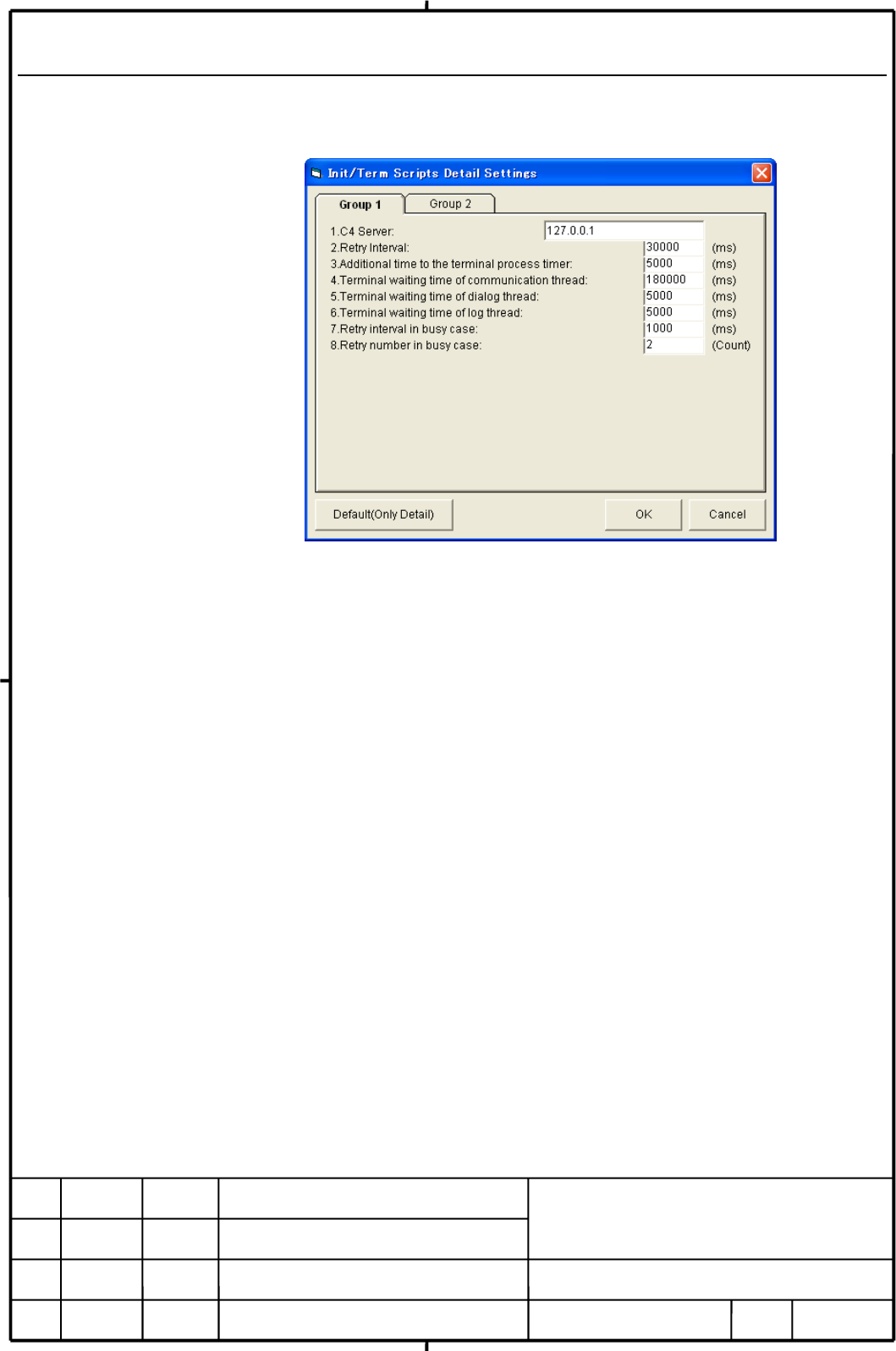

5.3.2.2 Init/Term Scripts Detail Settings

This subsection describes each of the items that can be set in the Init/Term

Scripts Detail Settings window. The items are divided into Groups 1 and 2.

Group 1

Item 1. C4 Server

Host name of the C4 server.

Default = 127.0.0.1

Item 2. Retry Interval

Retry interval (ms) to be assumed if a communication error occurs

in the initialization process or in reading/writing during initiation

or if initialization fails when the power is switched from OFF to

ON. Default = 30000

Item 3. Additional time to the terminal process timer

Additional time (ms) to the terminal process timer.

Default = 5000

Item 4. Terminal waiting time of communication thread

Terminal waiting time (ms) of a child thread of a communication

thread. Default = 180000 NOTE

Item 5. Terminal waiting time of dialog thread

Terminal waiting time (ms) of a child thread of a dialog thread.

Default = 5000

Item 6. Terminal waiting time of log thread
