B-75074EN/04 APPENDIX B.NC SETTING

- 521 -

Changing the host computer to be connected for the FTP file transfer function

Select a destination.

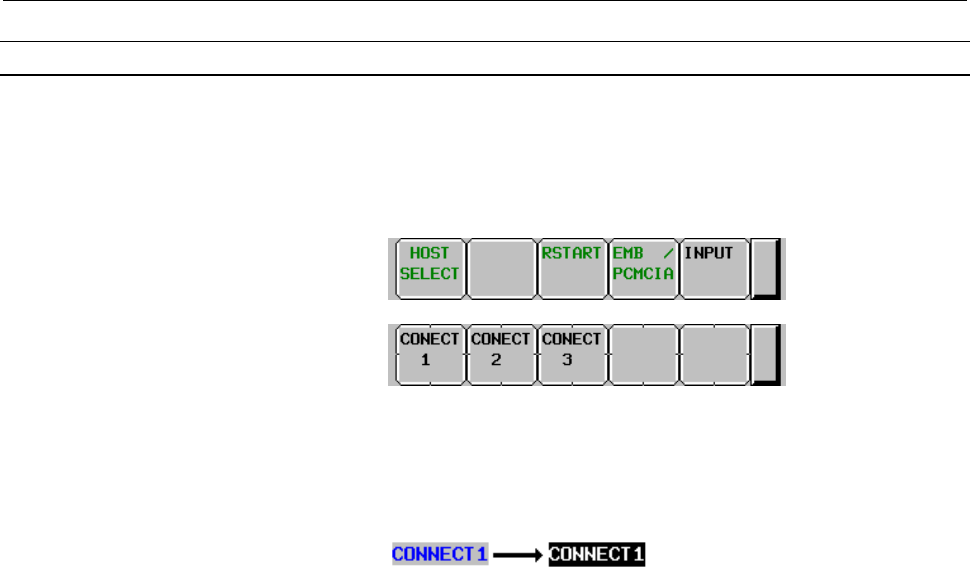

1 Pressing the [(OPRT)] soft key causes soft key [HOST SELECT]

to be displayed. Pressing this soft key causes soft keys [CONECT

1], [CONECT 2], and [CONECT 3] to be displayed.

2 Depending on the host computer to be connected, press soft key

[CONECT 1], [CONECT 2], or [CONECT 3]. Destination 1, 2, or

3 is highlighted in the screen title field. The computer

corresponding to the highlighted destination is selected as the

target computer to be connected.

When destination 1 is selected
