4.OVERVIEW MENU OPERATION B-75074EN/04

- 254 -

Naming each object

When a machine is added, assign a name to a copied and pasted object.

(When the number of connected machines is decreased, the remaining

object names are valid, and need not be changed.)

Select a desired object from CimEdit, display the property dialog box

by right-clicking. Assign the following name corresponding to a

machine number to [Object name] of the [General] tab:

Object : Object name

Status group : McnStat + machine number

Machine figure : McnImage + machine number

When the number of connected machines is increased to 6, for example,

an object created for machine number 6 is named as follows:

Status group : McnStat6

Machine figure : McnImage6

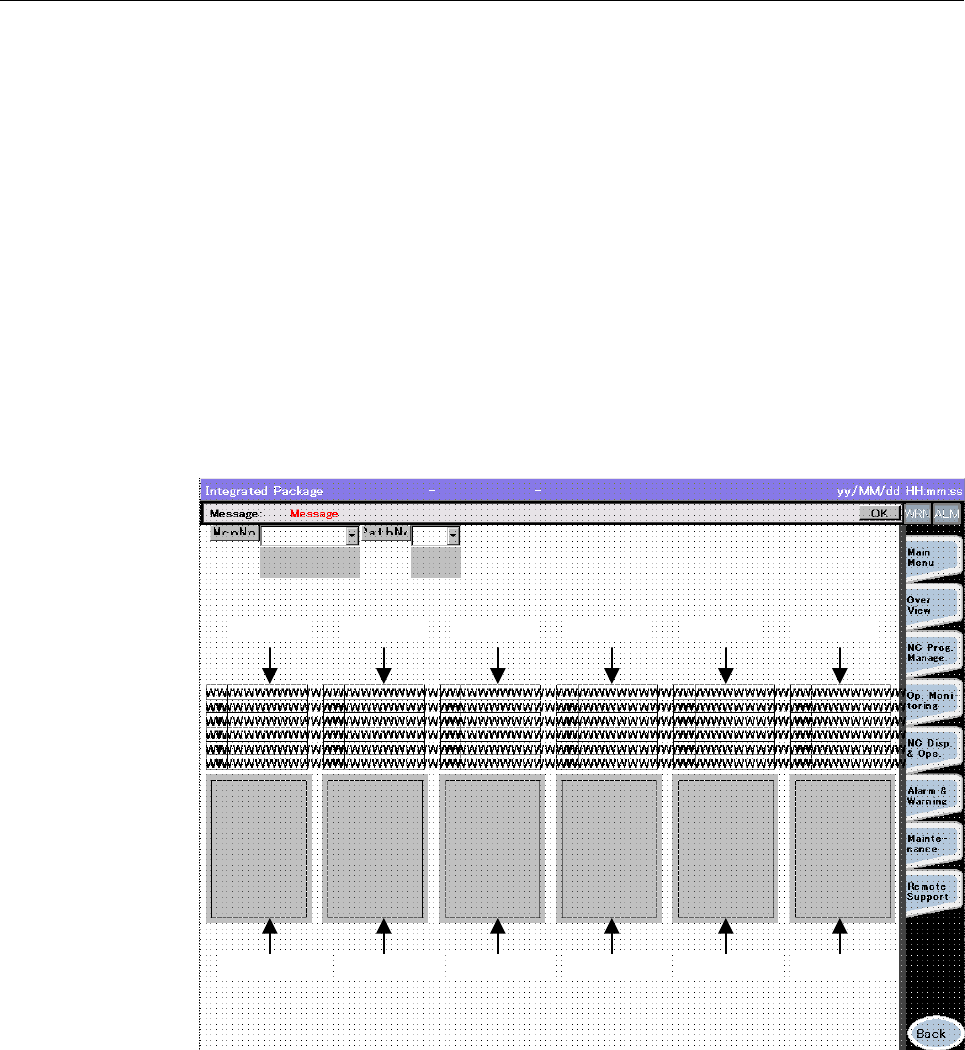

When increasing the number of connected machines to 6, name the

status group object and machine figure object as shown below.

McnImage3 McnImage4McnImage1 McnImage2 McnImage5 McnImage6

McnSlct1 McnStat2 McnStat3 McnStat4 McnStat5 McnStat6
