11.ALARM AND WARNING OPERATION B-75074EN/04

- 374 -

11.2 SCREEN OPERATION (1) ALARM MESSAGE SCREEN

Method of activation

Use one of the following methods to activate the screen:

1. [Main Menu] → [Alarm and Warning] button (The alarm and

warning screen appears.) → [Alarm Message] button

2. [Alarm & Warning] tab (The alarm and warning screen appears.)

→ [Alarm Message] button

3. [Overview-Screen List for Each Machine] screen → [Alarm

Message] button

4. Click the [ALM] ([OPM]) lamp when the lamp is turned on.

When the screen is activated, the screen displays the alarm message or

operator message for the machine with the youngest machine number

among those machines for which alarms are issued.

If there are both an alarm state and an operator message, the information

of a machine in the alarm state is displayed.

Automatic update

This screen is updated to the latest information at intervals of one

minute.

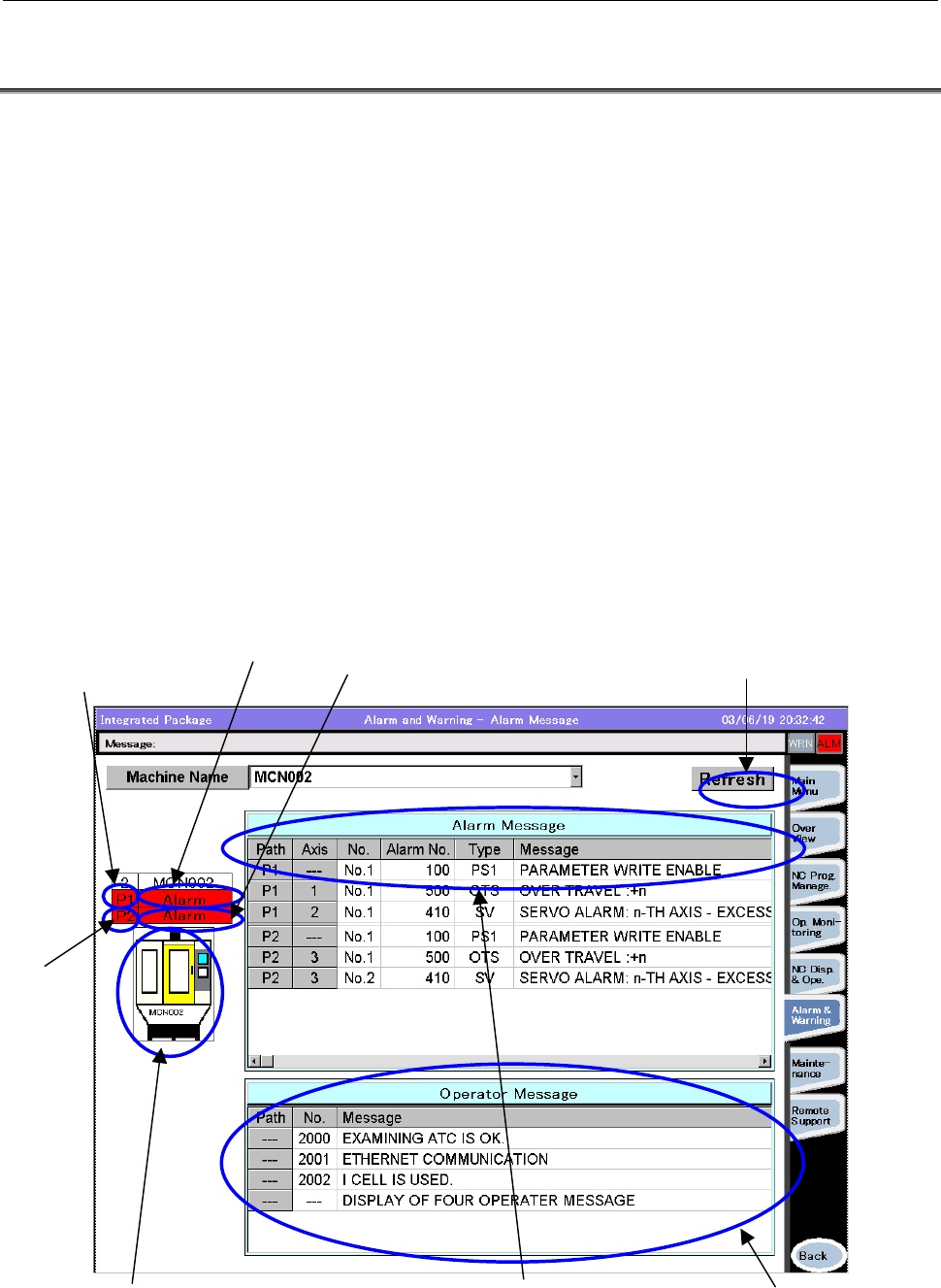

Method of operation

<4> Status display for each path

<5> Machine figure display

<1> Machine number display

<2> Machine name display

<3> Path

number

display

<6> Display refresh button

<7> Alarm message display

<8> Operator message display
