A.HOW TO INSTALL AND REGISTER CIMPLICITY APPENDIX B-75074EN/04

- 472 -

A.1.3 Newly Installing CIMPLICITY HMI

Once setup.bat is selected from the distribution CD, the CIMPLICITY

HMI splash screen appears while the installation procedure is checking

the computer. When the check is completed, dialog boxes appear in

series to guide you through the remaining installation work.

The procedure advances as stated below.

• Welcome

• Software Evaluation License Agreement

(for enabling you to check the software evaluation license

agreement)

• CIMPLICITY HMI Product Options

(for prompting you to set up CIMPLICITY system installation

options)

• Choose Destination Location

(for prompting you to select an installation path)

• HMI Server Options

(for prompting you to set up CIMPLICITY function options)

• Choose Program Group

(for prompting you to select a program group)

• Registration

(for prompting you to register at installation)

• Setup Complete

(for informing you that you have succeeded in setup)

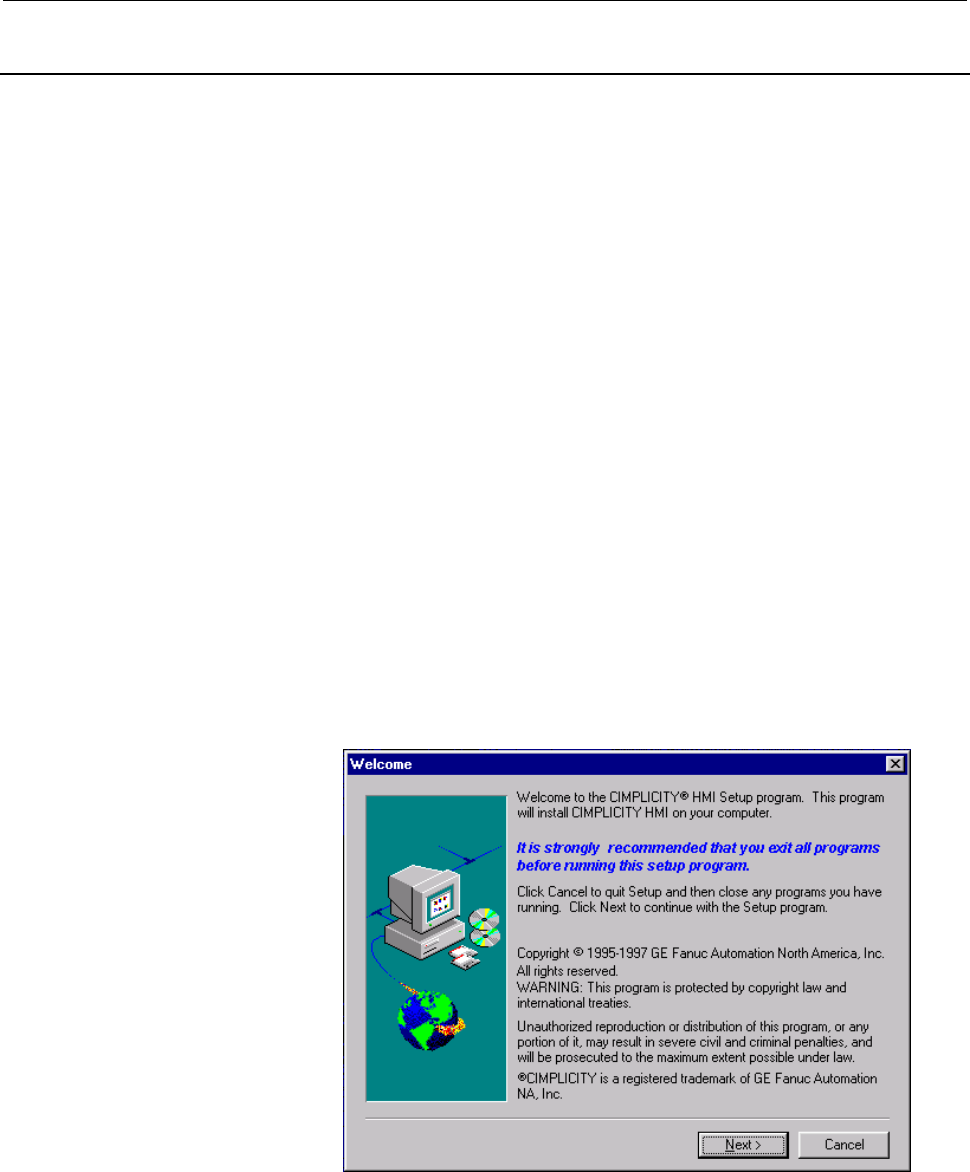

The CIMPLICITY HMI System setup screen opens with the Welcome

dialog box.
