2.BASIC FUNCTIONS SETTING B-75074EN/04

- 162 -

Setting the number of axis

For communication using FOCAS2/Ethernet, the number of axes of the

NC needs to be set. If the power to the NC is on and communication is

enabled, the number of axes is automatically obtained from the NC. In

this case, no action is required.

(1) If the number of axes has not been set even once

When the i CELL machine setting screen is opened

a. The power to the NC is on and communication is enabled

→ The number of axes is automatically obtained from the

NC and set. No action is required.

b. The power to the NC is off, and communication is disabled.

→ The number of axes is not automatically set. The

number of axes needs to be set manually.

(2) If the number of axes has been set at least once

The number of axes is not automatically modified.

If the number of axes is changed afterwards, modify the setting

manually, or obtain the number of axes from the NC by operating

the screen.

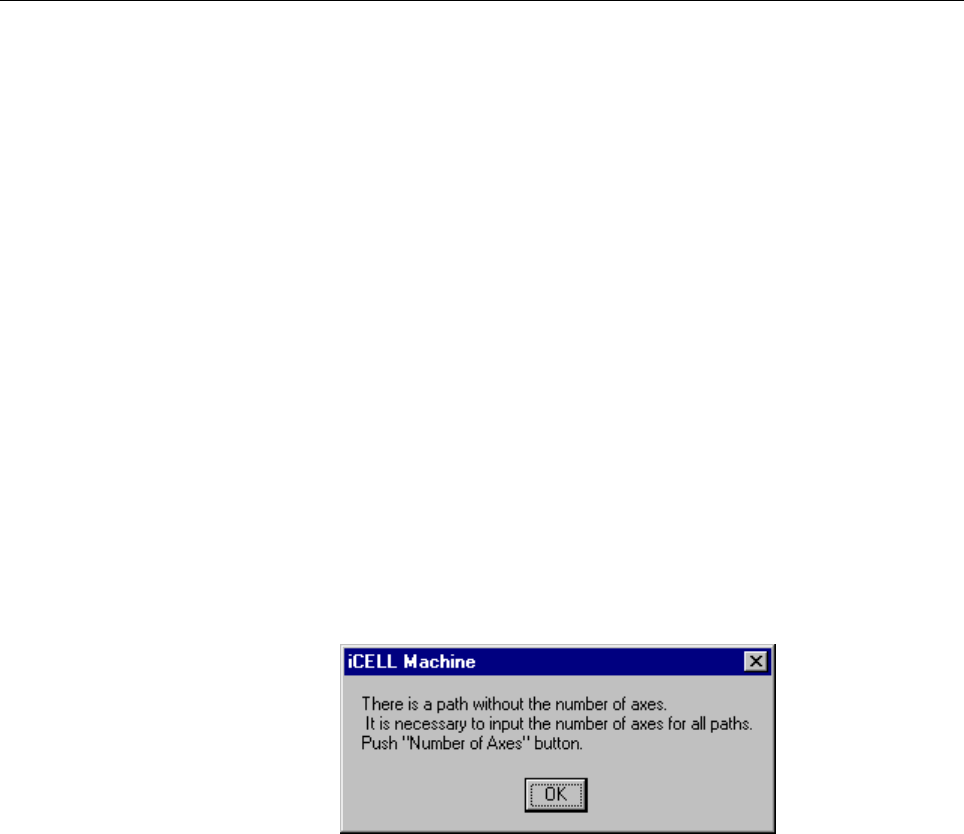

If the number of axes is not set even when the

i CELL function is

checked on the

i CELL machine setting screen, pressing the OK button

displays the following dialog box:
