9.NC MAINTENANCE OPERATION B-75074EN/04

- 364 -

9.7 BACKUP DATA DISPLAY

The backup data display screen can display the following history data

backed up to the personal computer with the automatic backup

function:

(1) Alarm history data

(2) External operator message history data

(3) Operation history data

NOTE

1 To display external operator message history data,

the optional external message function or the

optional external data input function is required.

2 The automatic backup function of the alarm history,

external operator message history, and operation

history for Series 30i/31i/32i is under development.

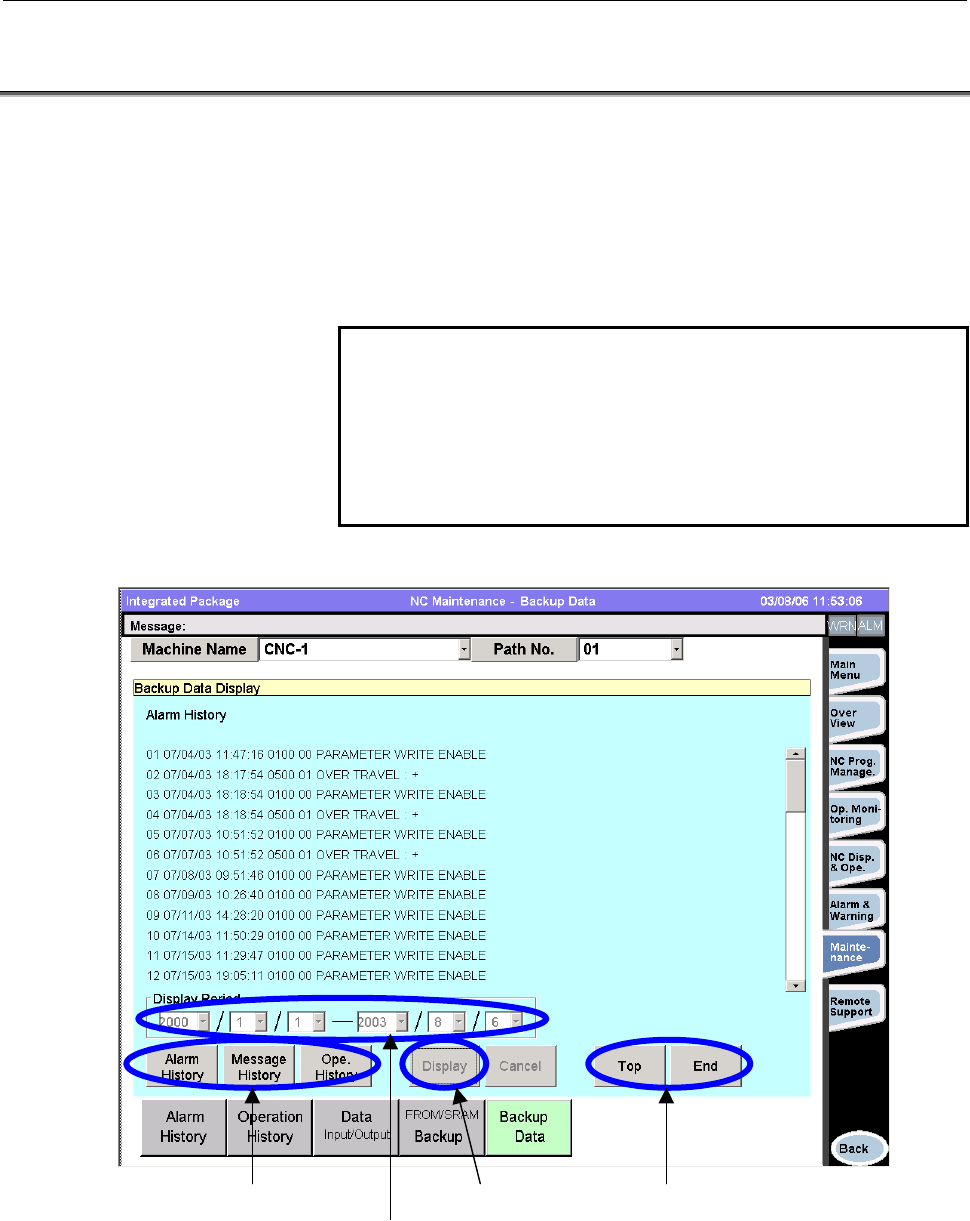

Screen operation

<1> Data type selection button

<2> Display period specification

<3> Display button <4> Button for jump to top/end
