5.CIMPLICITY VIEWER SETTING B-75074EN/04

- 206 -

- Adding items in the hosts file

When using a router between the server and viewer PCs, you also need

to edit the hosts file. The hosts file is in System32\drivers\etc in the

Windows installation directory (for example, C:\WinNT).

In the hosts file on the server PC, add the computer name and IP address

of the viewer PC. When multiple viewer PCs are used, add the

computer name and IP address of each viewer PC.

In the hosts file on the viewer PC, add the computer name and IP

address of the server PC. You should find setting “127.0.0.1 localhost”

in the host file. Add the computer name and IP address just under the

line.

Edit the hosts file with a text editor such as Notepad. Be careful not to

modify or delete any item that has been set. It is desirable to create a

copy of the host file in the same directory before editing.

Computer name

of the server PC

SERVER01

IP address

192.168.1.30

Router

Network A

Network B

192.168.2.40 VIEWER01

192.168.2.41 VIEWER02

Computer name

of viewer PC <1>

VIEWER01

IP address

192.168.2.40

Computer name

of viewer PC <2>

VIEWER02

IP address

192.168.2.41

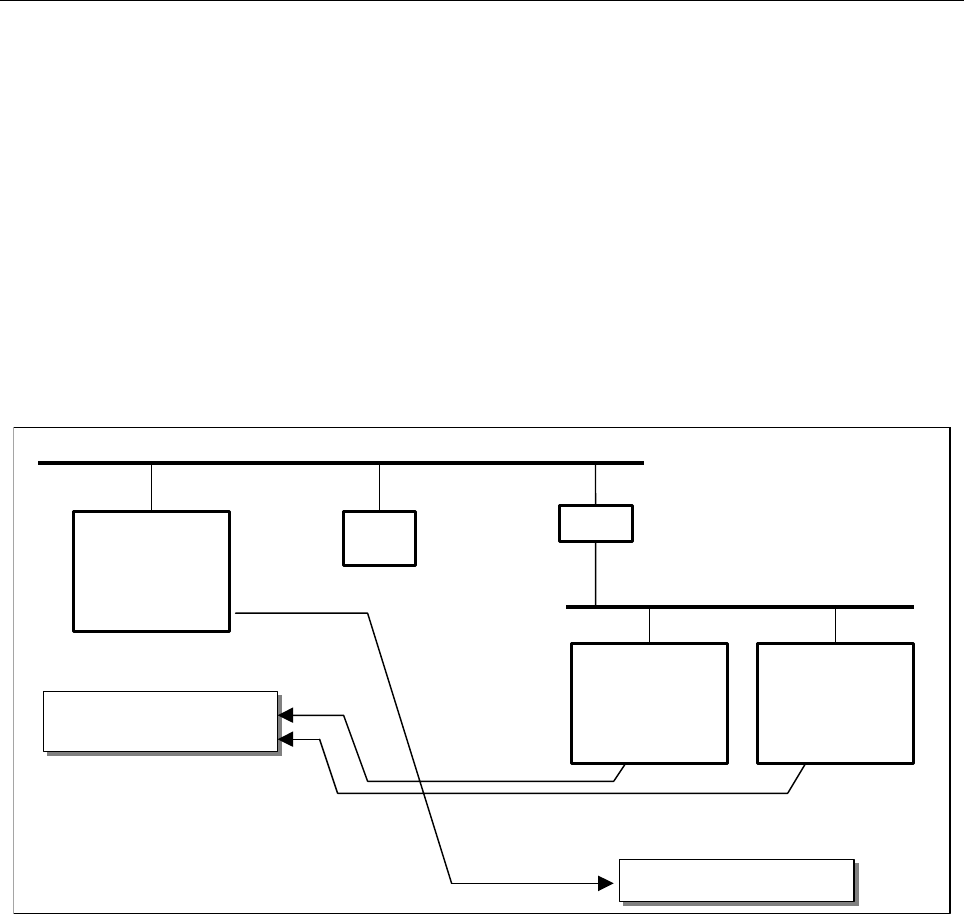

192.168.1.30 SERVER01

Items added to the hosts file

on the server PC

Items added to the hosts file on each of viewer

PCs <1> and <2>

(

same line for <1> and <2>

)

Example of adding items to the hosts files
