5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 264 -

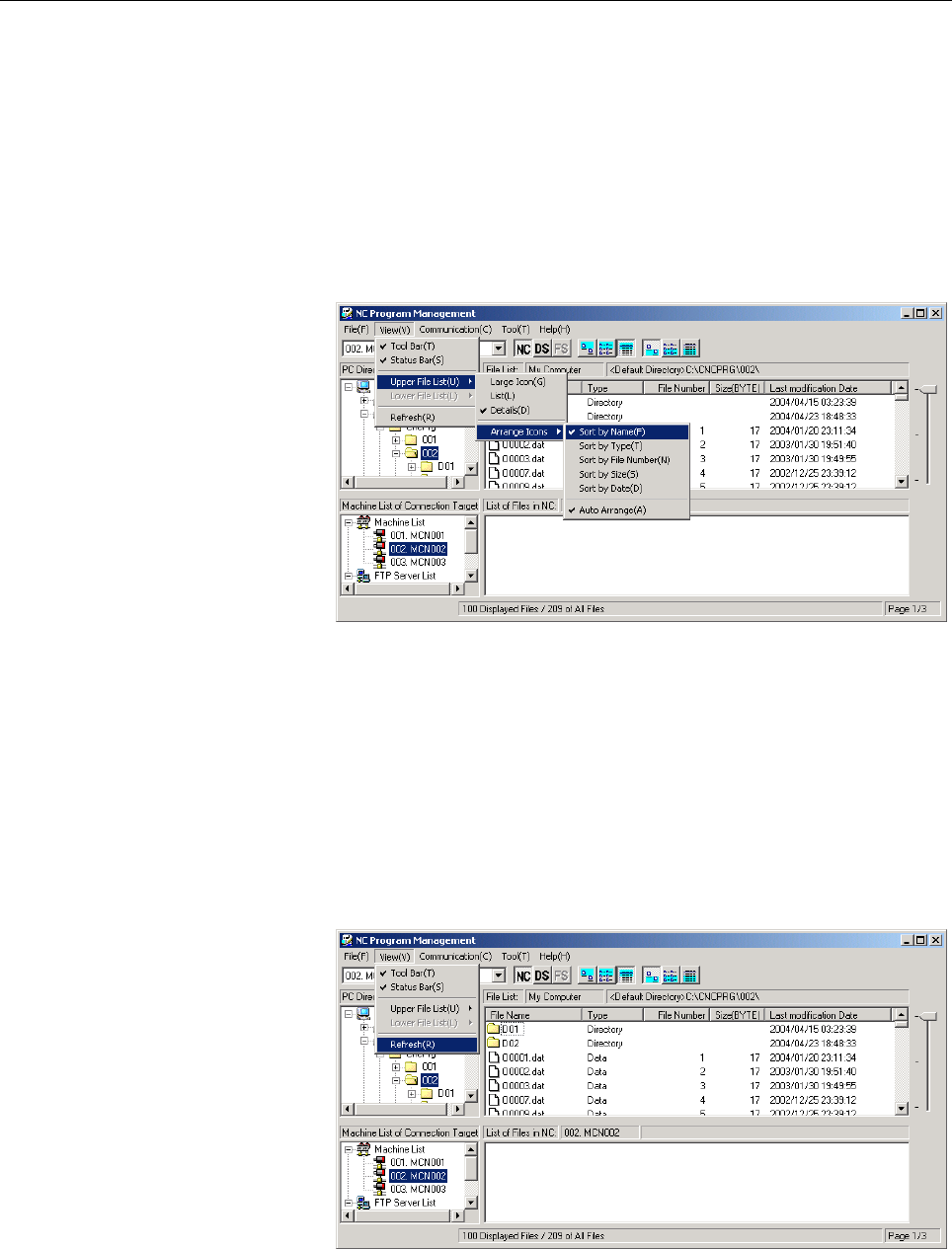

Display sequence of the PC side File List

• To sort files alphabetically by name, choose the [Sort by Name]

command from the [Arrange Icons] of [Upper File List] of [View]

menu.

• To sort files by type, choose the [Sort by Type] command from the

[Arrange Icons] of [Upper File List] of [View] menu.

• To sort files by size, choose the [Sort by Size] command from the

[Arrange Icons] of [Upper File List] of [View] menu.

• To sort files by date, choose the [Sort by Date] command from the

[Arrange Icons] of [Upper File List] of [View] menu.

♦ When complete information of files are displayed, you can

sort files by clicking one of the [Name], [Type], [Size], [Last

modification date] column in the top of the File List.

Updating the display of the PC side File List

1 Press the F5 function key or choose the [Refresh] command from

the [View] menu. The File List is updated.

The display of the PC side File List is updated to the most recent

information. The PC Directory Trees, the Machine List of

Connection Target, and the File List of the connection destination

are also updated at the same time.
