4.REFERENCING THE DATABASE USER CUSTOMIZE B-75074EN/04

- 442 -

4.2.2 Displaying Acquired Data

This subsection describes the method of displaying acquired data on an

Excel sheet.

Use the Range property or the Cells property to display acquired data in

a cell.

Setting numeric values in cells

1 When the Range property is used

When using the Range property, use the format "Range("matrix")"

like "Range("A2")". Represent a column by using a letter like "A".

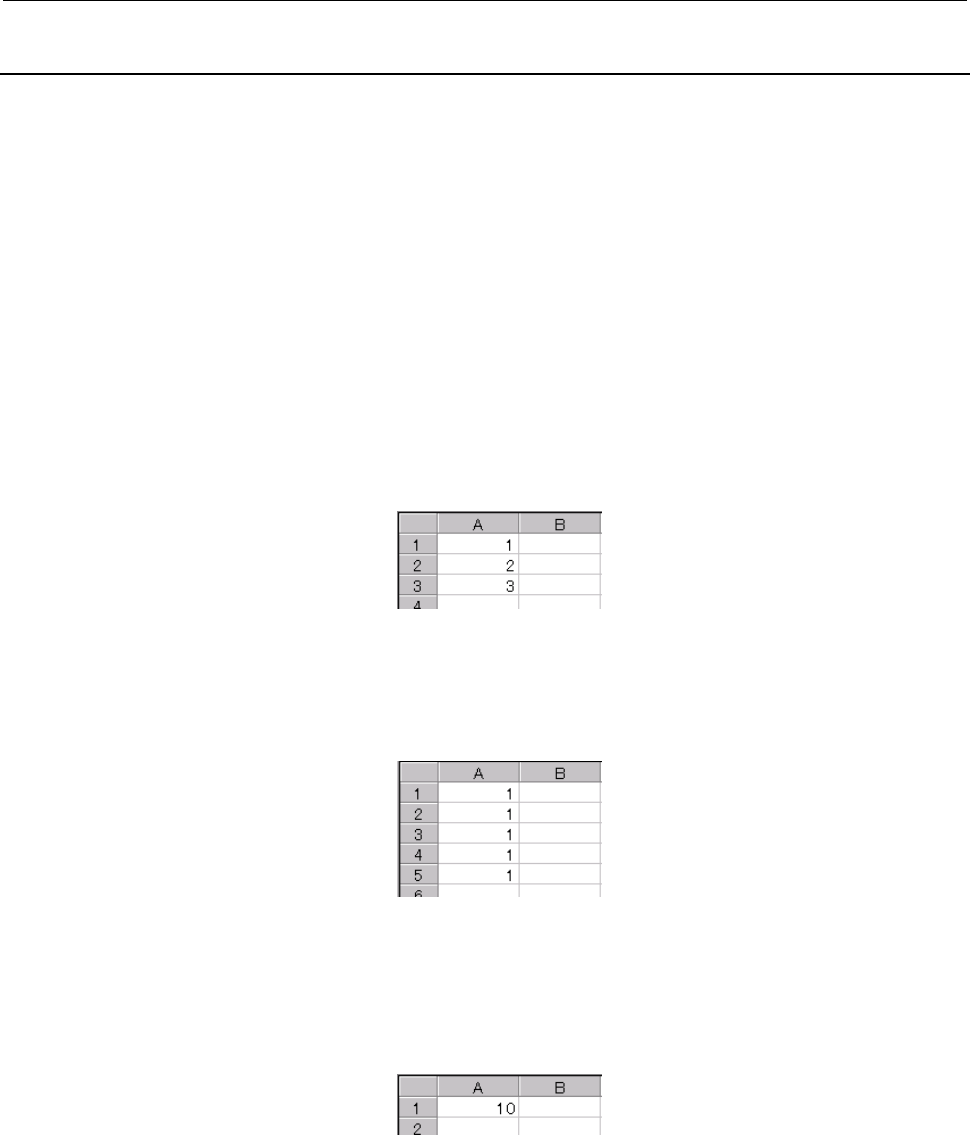

A numeric value can be set in one cell as follows:

Range(“A1”).Value = 1 ‘Basic type

Range(“A2”) = 2 ‘Abbreviated type

[A3] = 3 ‘Abbreviated type

Numeric values can be set in multiple cells (A1, A2, A3, A4, A5)

at a time as follows:

Range(“A1:A5”).Value = 1

The numeric value set in a variable can be set as follows:

Dim X As Long

X = 10

Range(“A1”).Value = X

2 When the Cells property is used

When using the Cells property, use the format "Cells (row,

column)" like "Cells (2, 1)". Represent a column by using a

numeric value like "1".

The Cells property allows a numeric variable to be used as an

argument.
