B-75074EN/04 OPERATION 8.NC DISPLAY AND OPERATION

- 339 -

<1> Actual position display

The current NC position is displayed.

The following information can be displayed:

(1) Overall position data (relative position, absolute position,

machine position, and distance to go)

(2) Relative position

(3) Absolute position

(4) Machine position

(5) Distance to go

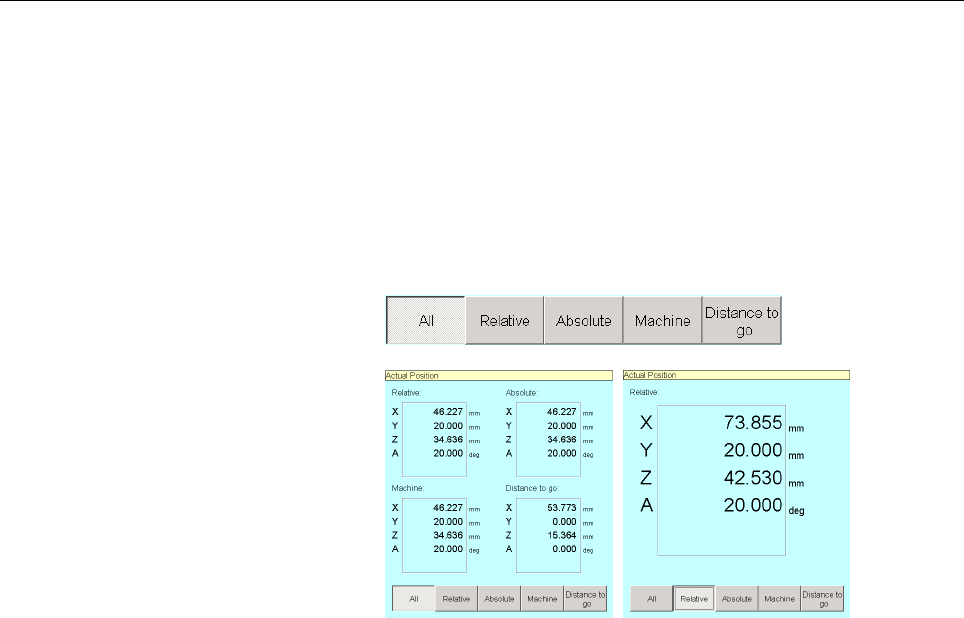

The following buttons are used for display switching:

Example of overall Example of relative

position display position display

<2> Modal information display

Modal information such as G code information is displayed.

<3> Actual speed information display

The actual speed and spindle speed are displayed.
