2.BASIC FUNCTIONS SETTING B-75074EN/04

- 150 -

Incorrect setting (2)

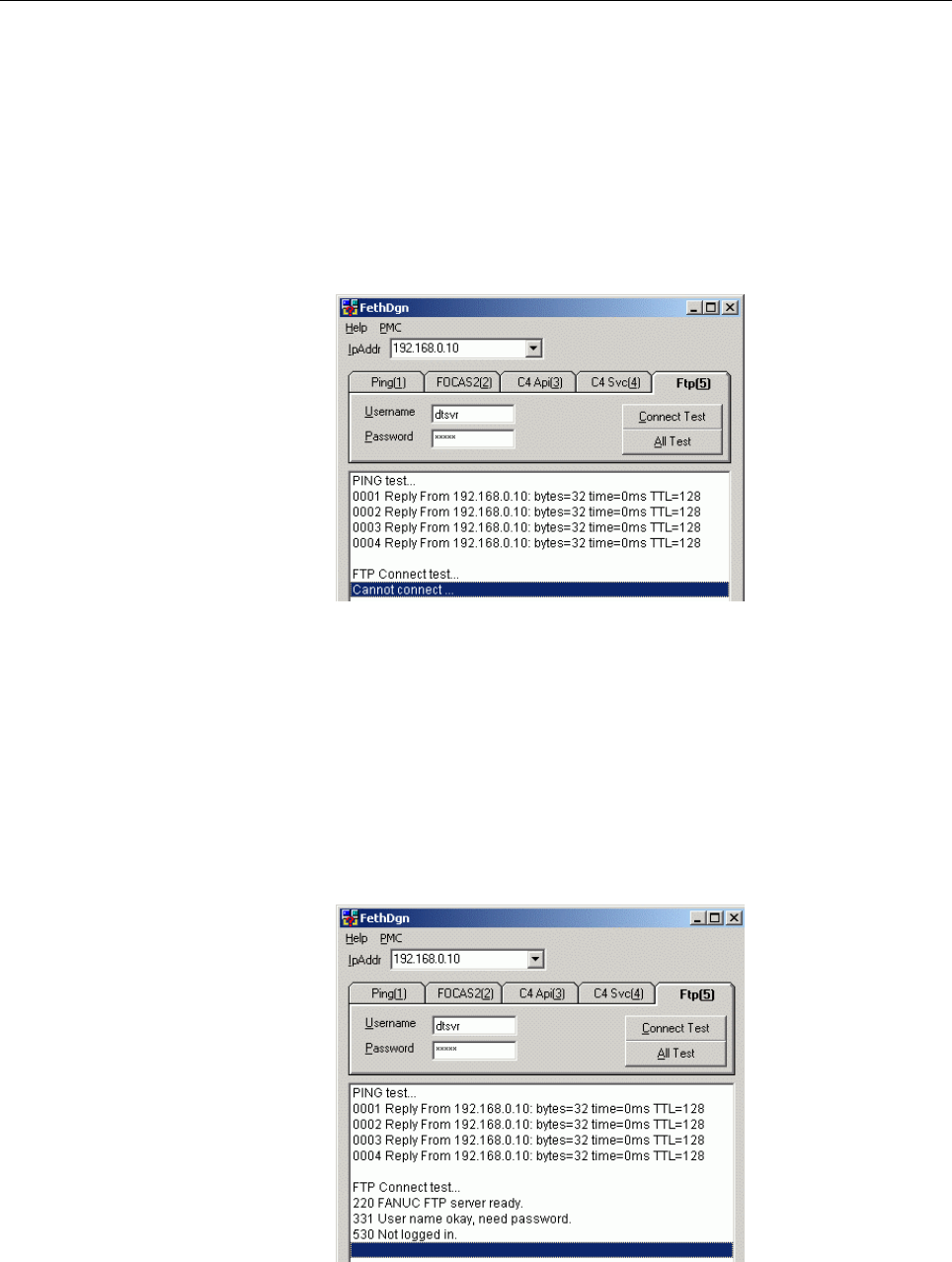

When a connection is made to an NC with the Data Server function not

enabled or to a PC with the FTP server function not enabled, "<2> FTP

Connect Test" may fail even if "<1> PING test" is successful.

In such a case, a message indicating the readiness for user acceptance

such as "220 FANUC FTP Server ready" is not displayed from the

communication destination, but "Cannot connect ..." is displayed. Set a

correct communication destination. The screen display below provides

an example where the communication destination is an NC that does not

have the Data Server function.

Incorrect setting (3)

When a set user name or password is incorrect, "<2> FTP Connect

Test" may fail even if "<1> PING test" is successful. In such a case, a

message indicating the readiness for user acceptance such as "220

FANUC FTP Server ready." is displayed from the communication

destination, and a message indicating a failure in login such as "530 Not

logged in." is displayed.

Check the user name and password.

The screen display below provides an example of incorrect password

setting. A similar screen is displayed if an incorrect user name is

entered.
