FANUC i-Cell Operators manual Page 165

Operators manual
B-75074EN/04 SETTING 2.BASIC FUNCTIONS
- 139 -
PH Power Mate i -H
0 Series 0i
M/T: Indicates an M/T type.
M Machining center
T Lathe
MM M series two-path control
TT T series two-/three-path control
MT T series with the complex machining function
P Punch/press
(Caution: This model cannot be connected to i CELL.)
L Laser
(Caution: This model cannot be connected to i CELL.)
Series : Indicates the CNC software series number, using a
four-digit character string.
Version : Indicates the CNC software version number, using a
four-digit character string.
Max Axes : Indicates the maximum number of controllable
axes.
Axes : Indicates the number of controlled axes.
<3> “C4Api test...” indicates whether the NC power is on or off.
Live=True means it is recognized that the NC power is on.
Live=False means it is recognized that the NC power is off.
NOTE
When the "Enable C4 Server" check box is cleared
in communication setting, Live=True/False in <3>
need not be checked.

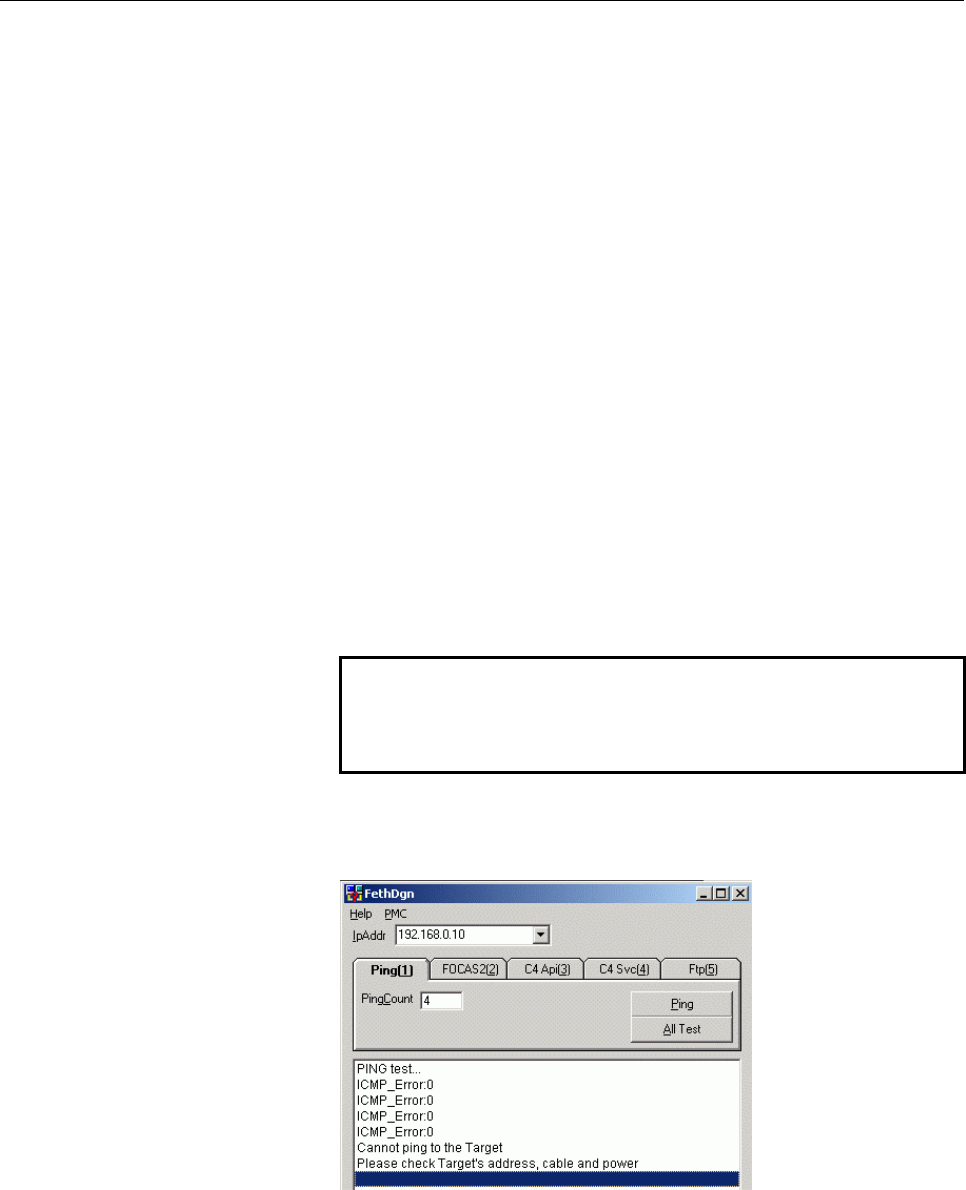

Incorrect setting (1)
If an IP address set up for the NC or PC is incorrect, or the NC power is
off, the dialog box may appear as shown below.
If the “Reply From...” line does not appear, the probable causes are:
(1) The NC power is off.
(2) The NC IP address is different from the one set up in the
Configuration dialog box.
(3) The NC network address or the host address is incorrect.
Refer to an applicable Ethernet board manual for explanations about the
IP address.
