B-75074EN/04 SETTING 3.MAIL

- 191 -

3.4 SEND TEST

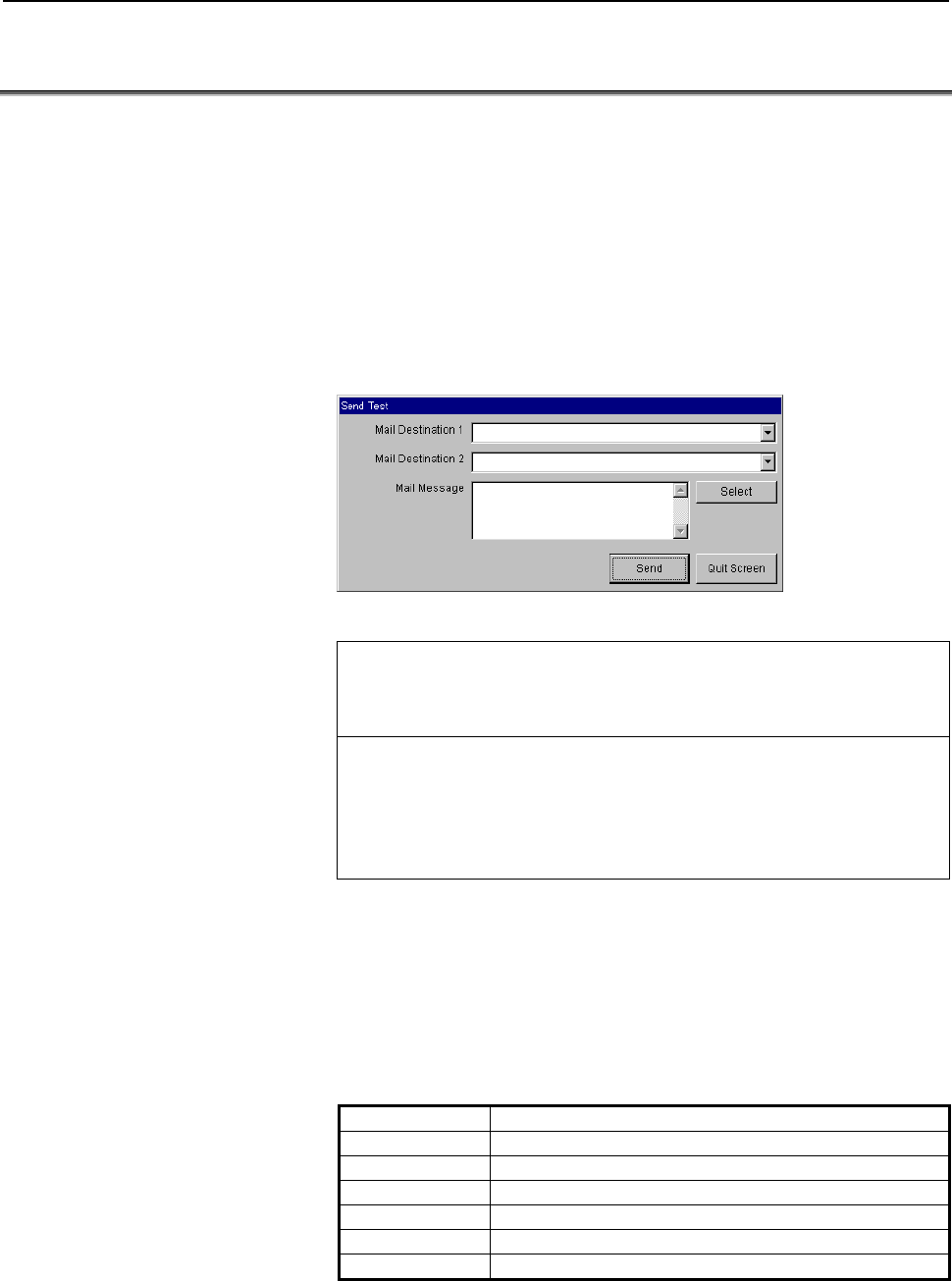

Selecting Mail and Send Test from the tree displays the Send Test

dialog box.

This dialog box causes mail to be sent no matter what is the status of the

connected machine. However, the mail message is sent without being

changed; any replacement character is not replaced with a value.

Performing a mail transmission test requires specifying correct values

in Mail Server and Mail Source Address in the Mailer Configuration

dialog box in addition to the settings in the Send Test dialog box. No

other setting is required. The operation of the Send Test dialog box does

not depend on whether Send Mail in the Mailer Configuration dialog

box is on.

The setting items in this dialog box are explained below.

Mail Destination 1

Mail Destination 2

These text boxes let you specify the addressee of

mail. It can be selected from mail addresses

previously saved to a text file. Each mail address can

consist of up to 255 characters.

Mail Message

This box lets you set up the body of mail. You can

select it from those previously saved to a text file by

clicking the Select button.

If the mail message contains a replacement character

string, it is sent together with the mail message. No

value substitutes the replacement character string.

The settings you made in Mail Destination 1, Mail Destination 2, and

Mail Message in this dialog box are saved to the same text files used

with the Mail Send Configuration dialog box.

After the settings are made, clicking the Send button sends the mail.

The following table lists the error numbers that are displayed if an

attempt to send mail fails, and their meanings.

Error number Meaning

1 Failure to connect to the mail server

4,5 Failure to send the mail source address

6 Failure to send the mail address of the destination

7 Failure to start mail transmission

8 Failure to send the mail message

9 Failure to end mail transmission
