10.TOOL LIFE MANAGEMENT OPERATION B-75074EN/04

- 370 -

• Rest of Life

The remaining life of each currently used tool is displayed.

This value is the result of subtracting the value of Count from

the value of Life.

• Unused Number

The number of tools not used yet is displayed, However,

skipped tools are not counted in this number.

- Example of tool group detail display

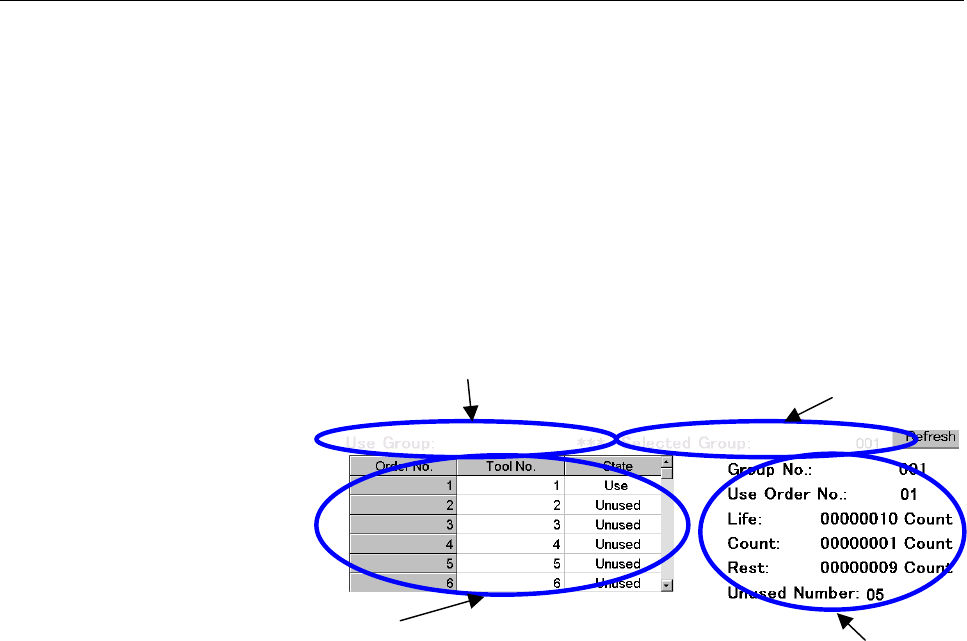

The state of tools registered in a selected tool group is displayed. For

the tool currently used, life information is displayed as well.

A. Currently used tool group number display

This display is not used on this screen.

B. Currently selected tool group number display

This display is not used on this screen.

C. Tool group detail table

• Order No.

The order number of each currently used tool is displayed.

• Tool No.

Each registered tool number is displayed.

• State

Tool state information is displayed. One of four types of

states are indicated: Use, Unused, No Life, and Skip.

D. Currently used tool detail display

For each of the items, the same data as for the tool group list is

displayed.

<2> Display refresh button

Clicking this button updates the screen to display the latest data.

<3> Machining result display button

Clicking this button displays the machining result screen.

<4> Workpiece process result display button

Clicking this button displays the workpiece process result screen.

B. Currently selected tool group number display

. Currently used tool group number displa

C. Tool group detail table

D. Currently used tool detail display
