B.NC SETTING APPENDIX B-75074EN/04

- 526 -

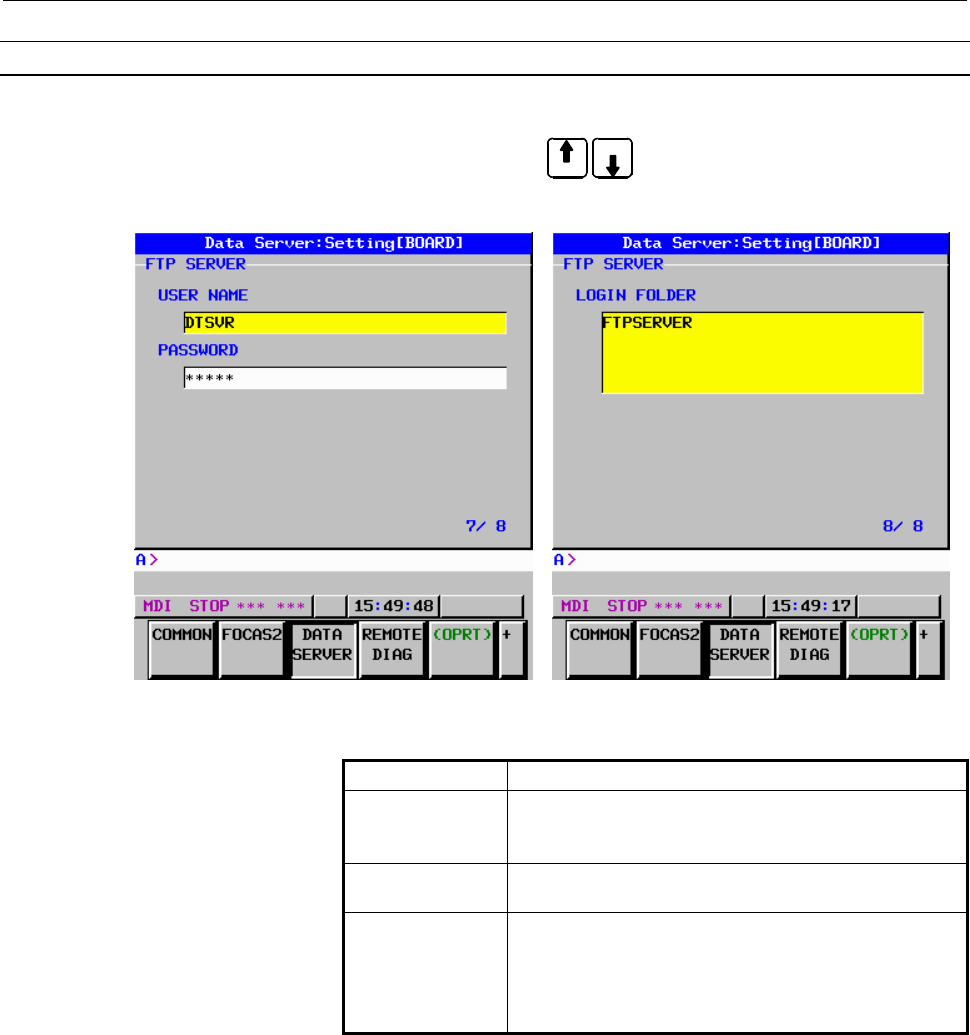

Data Server screen (FTP Server)

Press soft key [DATA SERVER] to display the Data Server screen.

By using page keys

PAG E

, the FTP server setting screen is

displayed after the connection destination 1, 2, or 3 screen.

Data Server screen (FTP Server)

Setting item

Item Description

USERNAME

Specify a user name to be used when the host computer

logs in to the Data Server. (A user name of up to 31

characters can be specified.)

PASSWORD

Specify the password for the above user name.

The password must always be specified.

Specify a work folder to be used when the host

computer logs in to the Data Server. (Up to 127

characters can be specified.)

If no data is set, the home folder (home directory) is

used as a login folder.
