A.HOW TO INSTALL AND REGISTER CIMPLICITY APPENDIX B-75074EN/04

- 474 -

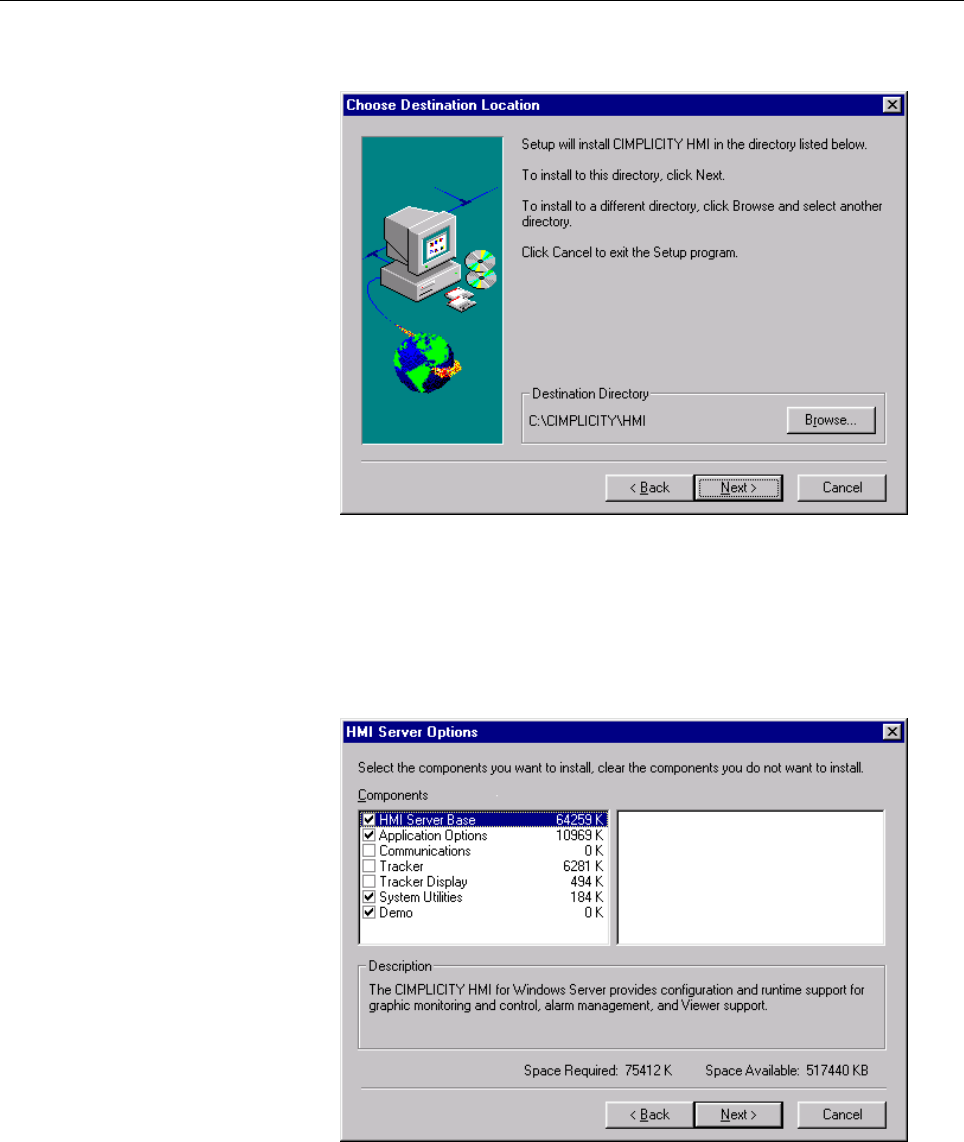

Select the option you want to install. A list of options appears, and the

Change Destination Location dialog box opens.

Select the directory where you want to install the CIMPLICITY HMI

software. Selecting Browse... enables you to search through a list of

directories. Alternatively, you can use a default directory

(c:\CIMPLICITY\HMI). After selecting a desired directory, select Next

to keep on installing.

The Options dialog box opens to list the products you may want to

install.

Select desired components of product options.

For some components in the Components list, more than one option is

available. When a component is selected, its options are listed in the list

box at the right. You can select desired options for individual

components. Once selection is completed, select Next to keep on

installing. The Choose Program Group dialog box opens.
