B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 173 -

2.10 WORKPIECES PROCESS RESULT SYSTEM

CONFIGURATION

NOTE

If any of the following operations is performed during

acquisition of workpieces process result data,

workpieces process result data may not be

acquired, or correct workpieces process result data

may not be acquired:

• Data backup using the automatic data backup

function

• Data input/output operation using the maintenance

screen

• NC program input/output using the NC program

management screen

During acquisition of workpieces process result

data, do not perform these operations.

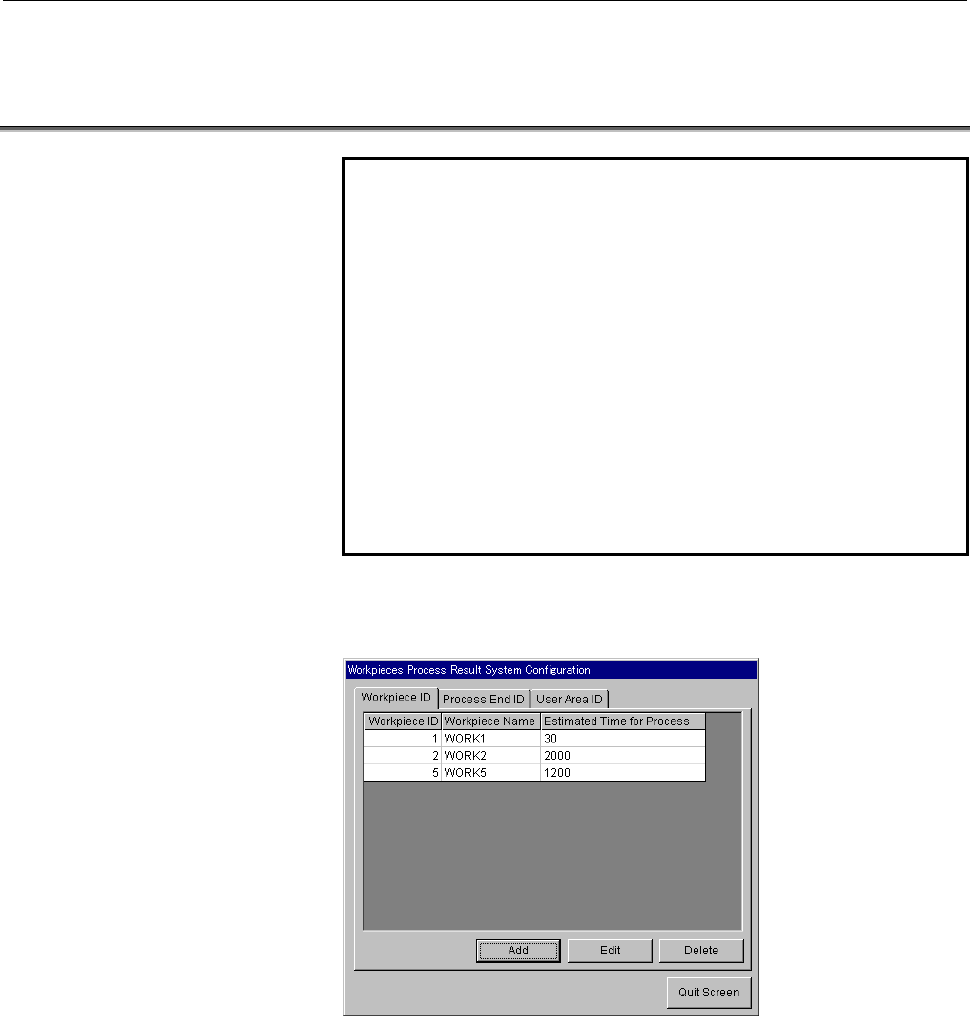

Selecting i CELL, System, and Workpieces Process Result from the

tree displays the following Workpieces Process Result System

Configuration dialog box, which is applied to all machines in common.

If you want to have the workpiece ID, process end ID, and user area ID

that were received from the NC with the workpiece process result

function represented using names rather than ID values on the screen,

associate the ID values with the names, using this dialog box.

Clicking the Add button adds a new association of an ID with a name.

After selecting a row from the grid, clicking the Edit button enables the

contents of the selected row to be changed.

After selecting a row from the grid, clicking the Delete button deletes

the contents of the selected row.

The settings made in this dialog box are common to all machines.

Whether to use these settings for each machine is determined according

to the workpiece process result options set up for the machine. See the

previous section, “ i CELL Machine.”
