7.NC MAINTENANCE GENERAL B-75074EN/04

- 60 -

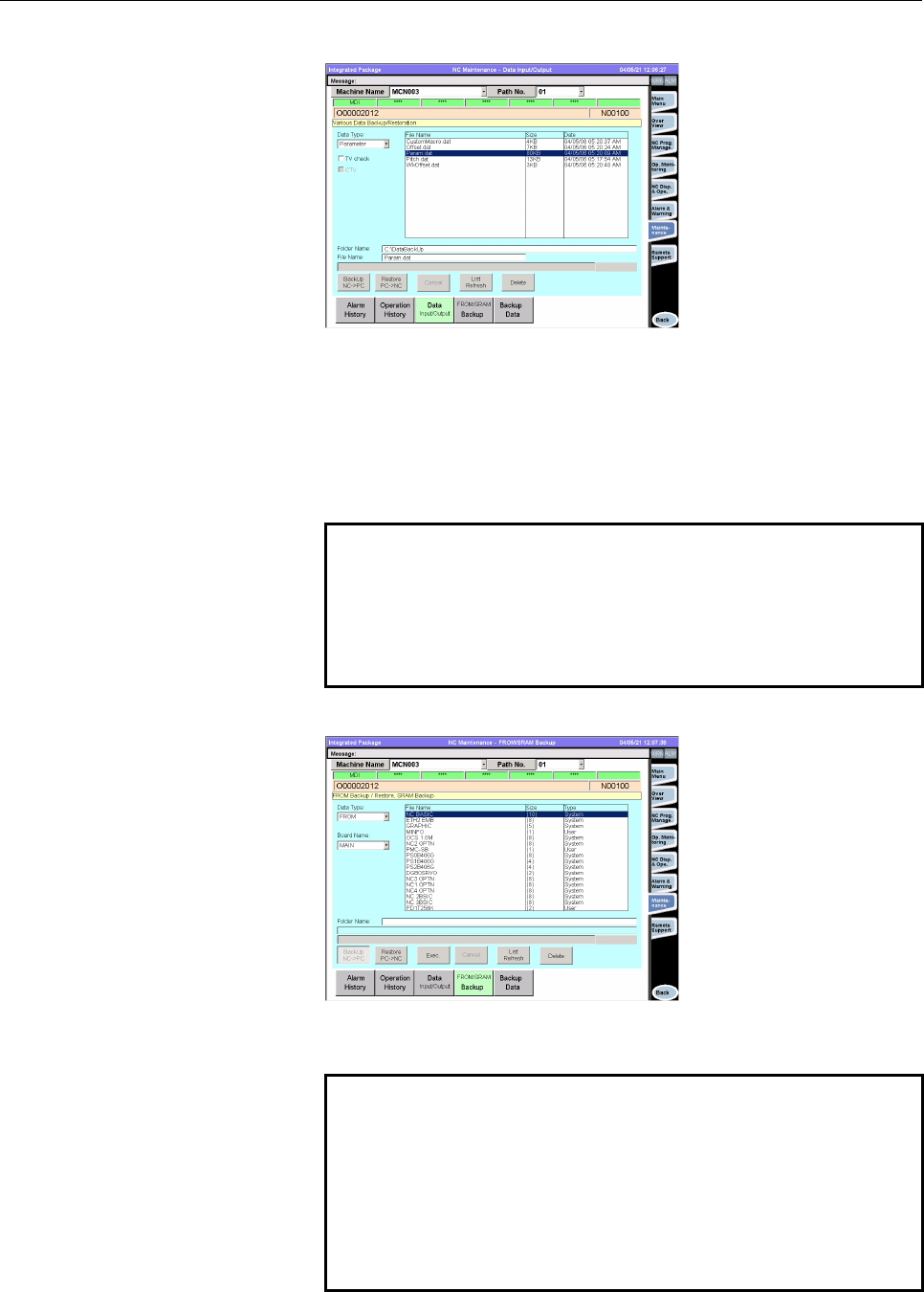

Various data backup/restoration screen

The various data backup/restoration screen enables the following data

to be backed up and restored:

(1) NC parameters

(2) Tool offset data

(3) Pitch error compensation data

(4) Custom macro variables (numbers in the five hundreds)

(5) Workpiece origin offset data

NOTE

For pitch error compensation data, the pitch error

compensation function (option) is required. For

custom macro variables, custom macro B (option) is

required. For workpiece origin offset data, the

workpiece coordinate system (option) is required.

FROM backup/restoration and SRAM backup screen

This screen enables FROM data to be backed up, restored, and deleted,

and enables SRAM data to be backed up.

NOTE

As FROM data, only user files created by the

machine tool builder or user in the FROM can be

backed up, restored, and deleted. The system files

provided by FANUC cannot be backed up, restored,

and deleted.

In order to restore SRAM data, the NC boot function

needs to be used.
