5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 294 -

NOTE

1 [File Viewer] allows you to view only one file at once.

If you browse another file while you are browsing the

current file, the [File Viewer] displays the contents of

the newly selected file.

2 [File Viewer] is a text viewer. It does not allow you to

view binary files.

3 The largest file size that [File Viewer] allows you to

view is 32 Kbytes. When you browse files exceeding

this size limit, only the first 32 Kbytes of the file are

displayed.

4 You can also specify third-party viewer software in

the [Options] dialog box. Refer to "5.2.10 Setting

Options" for details.

Editing a file of the connection destination

NOTE

If you have selected the "Disable Editor" option in

the [Options] dialog box, the [Edit] menu is not

displayed.

1 Click a file to be edited in the File List of the connection

destination.

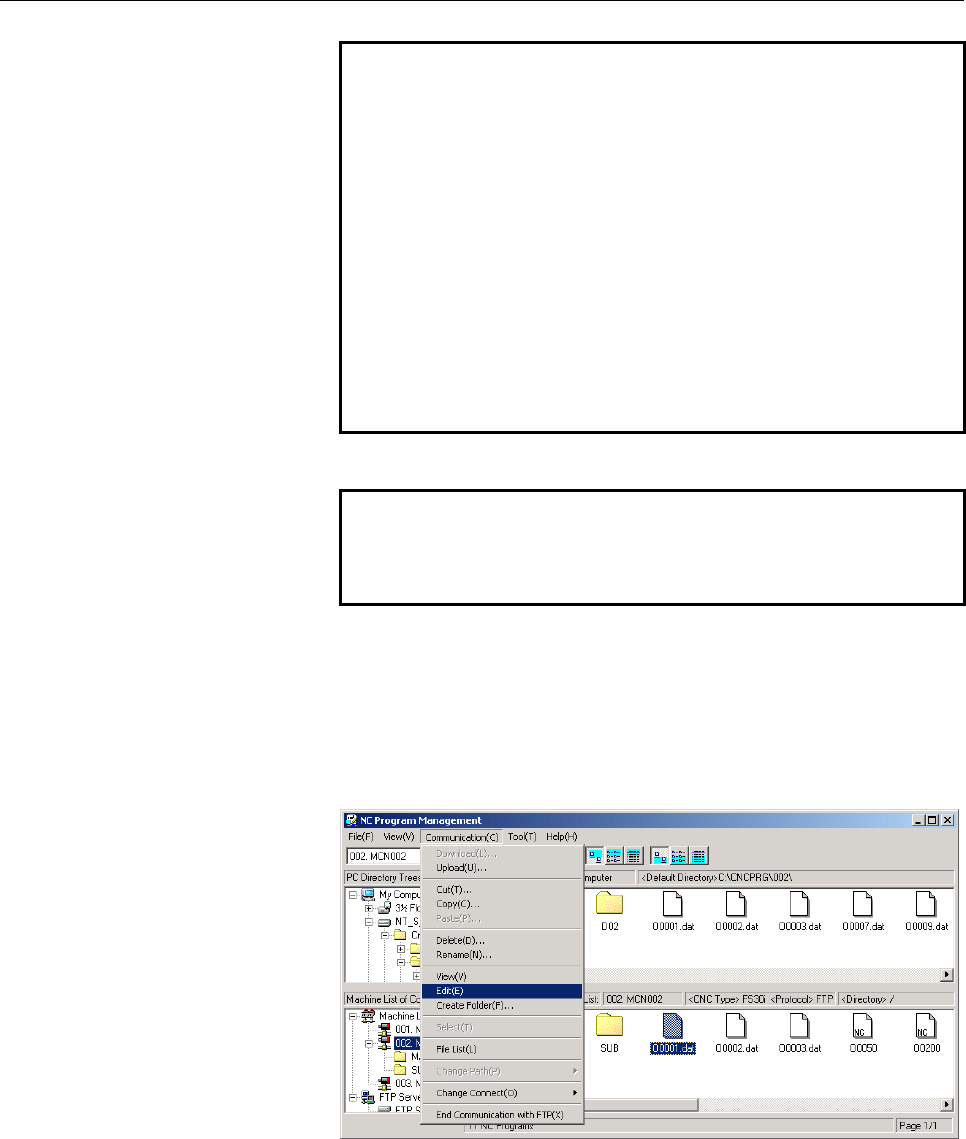

2 In the [Communication] menu or the menu displayed by

right-clicking on the selected file, click the [Edit] command. The

specified file is automatically uploaded (temporarily saved on the

personal computer), and the viewer set in the [Option] dialog box

is activated.
